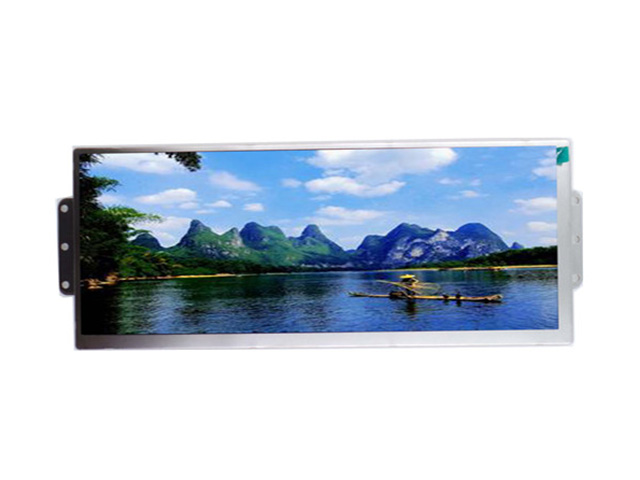

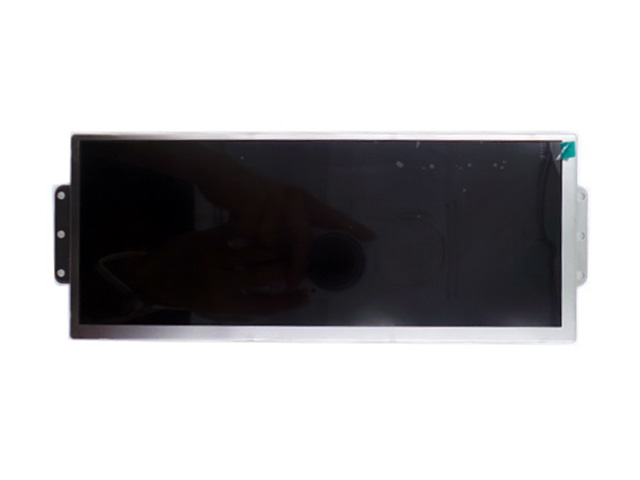

| Nombor Bahagian | S091WX02 |
| Jenama | CDTECH |
| Saiz | 9.1 |
| Permohonan | Industrial Stretched |
| Resolusi | 1280×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 3S12P |
| Antara muka | LVDS |
| pengilang | CDTECH |
| nama model | S091WX02 |
| saiz skrin | 9.1 inch (3/5 cut of 10.1") |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1280(RGB)×480 (DVGA) 149PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 216.96 × 81.36 (H×V) |
| garis besar (mm) | 231.6 × 94.7 (H×V×D) |
| kawasan bezel (mm) | 220.46 × 84.86 (H×V) |
| rawatan | - |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 800 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 10/15 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M |
| lampu latar | 3S12P WLED , 30K hours , No Driver |
| jisim | TBD |
| digunakan untuk | Industrial Stretched Bar LCD |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (1 ch, 8-bit) , 40 pins Connector |
| bekalan voltan | 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| maks. penilaian | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
