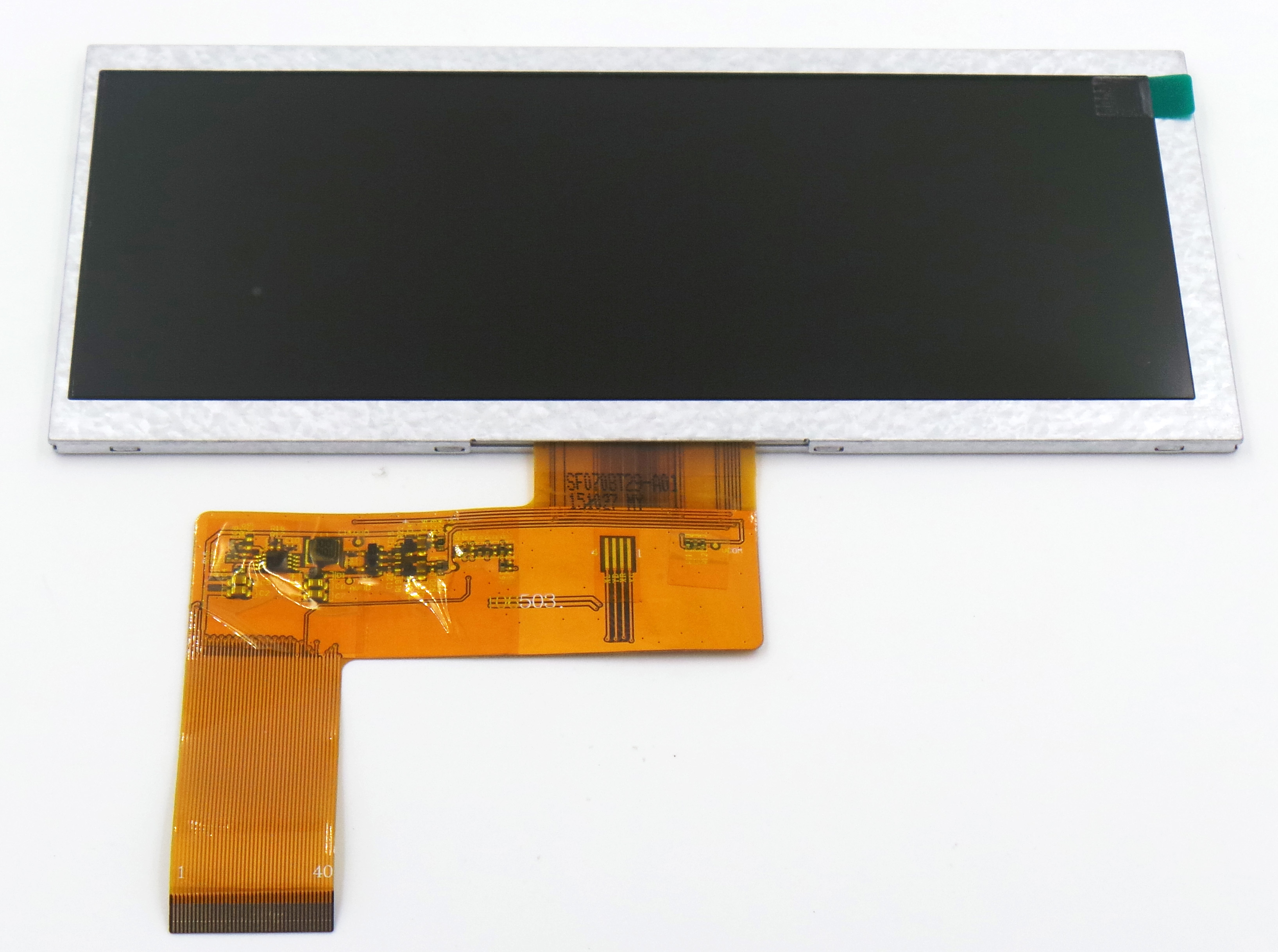

| Nombor Bahagian | S065WV03 |
| Jenama | CDTECH |
| Saiz | 6.5 |
| Permohonan | Industrial Stretched |
| Resolusi | 800×320 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | 3S7P |
| Antara muka | |
| jenama panel | CDTECH |
| saiz panel | 6.5" (2/3 cut of 7.0") |
| resolusi | 800(RGB)×320, 133PPI |
| kawasan paparan | 154.08(W)×57.28(H) mm |
| saiz garis besar | 165(W)×72.86(H) mm |
| kecerahan | 500 cd/m² (Typ.) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| pandangan terbaik pada | 12 o'clock |
| warna paparan | 16.7M 55% NTSC |
| kekerapan | 60Hz |
| berat badan | TBD |
| model panel | S065WV03 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | 156.7(W)×60.66(H) mm |
| permukaan | - |
| nisbah kontras | 500:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| jenis lampu | 3S7P WLED , 30K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Industrial Stretched Bar LCD |
