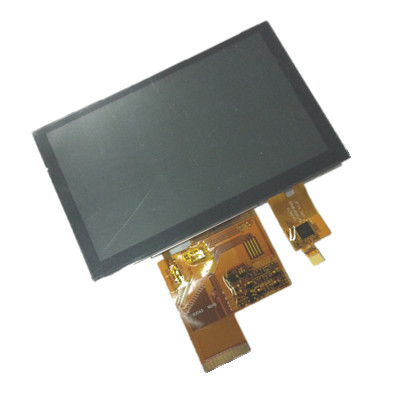

| Nombor Bahagian | S050WV49 |
| Jenama | CDTECH |
| Saiz | 5.0 |
| Permohonan | Automotive Display I |
| Resolusi | 800×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | 6S2P |
| Antara muka | Parallel |
| pengilang | CDTECH |
| nama model | S050WV49 |
| saiz skrin | 5.0 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 800(RGB)×480 (WVGA) 188PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 108 × 64.8 (H×V) |
| garis besar (mm) | 120.7 × 75.8 × 3.2 (H×V×D) |
| kawasan bezel (mm) | 110.6 × 67.6 (H×V) |
| rawatan | - |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 600 : 1 (Typ.) (TM) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| tindak balas | 20/20 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | 12 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 16.7M 50% NTSC |
| lampu latar | 6S2P WLED , 25K hours , No Driver |
| jisim | TBD |
| digunakan untuk | Automotive Display Industrial |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | Parallel RGB (1 ch, 8-bit) , FPC 40 pins |
| bekalan voltan | 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
