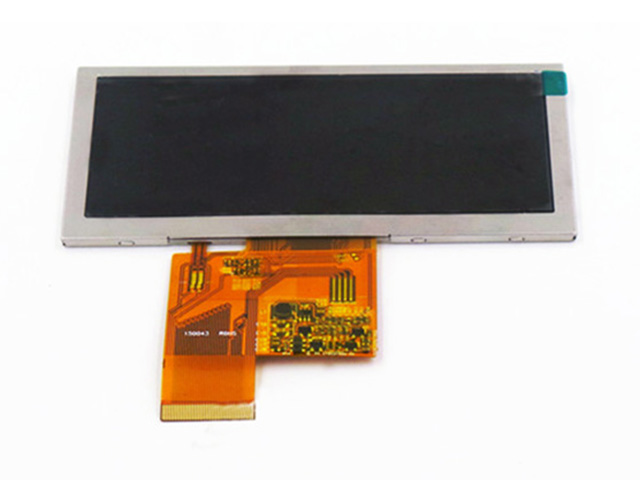

| Nombor Bahagian | S046WV01 |
| Jenama | CDTECH |
| Saiz | 4.6 |
| Permohonan | Industrial |
| Resolusi | 800×320 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | 6S2P |
| Antara muka | Parallel |
| jenama panel | CDTECH |
| model panel | S046WV01 |
| saiz panel | 4.6" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 800(RGB)×320, 188PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 108(W)×43.2(H) mm |
| pembukaan bezel | 110.6(W)×46.0(H) mm |
| saiz garis besar | 120.7(W)×56.16(H) ×3.3(D) mm |
| permukaan | - |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) (TM) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | 12 o'clock |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| warna paparan | 16.7M 50% NTSC |
| jenis lampu | 6S2P WLED , 25K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | TBD |
| permohonan | Industrial |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| voltan masukan | 3.3V (Typ.)(VDD) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
