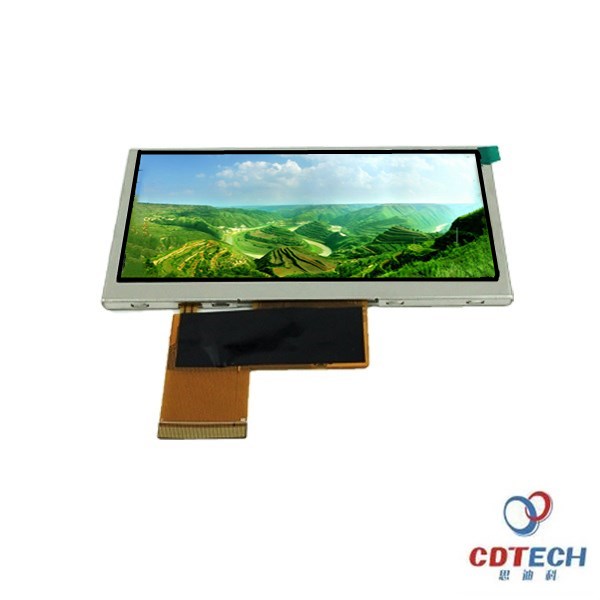

| Nombor Bahagian | S043WQ55-T |
| Jenama | CDTECH |
| Saiz | 4.3 |
| Permohonan | Automotive Display I |
| Resolusi | 480×272 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | 5S2P |
| Antara muka | Parallel |
| jenama panel | CDTECH |
| model panel | S043WQ55-T |
| saiz panel | 4.3" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 480(RGB)×272, WQVGA, 128PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 95.04(W)×53.856(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 105.5(W)×67.2(H) mm |
| permukaan | - |
| kecerahan | 280 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) (TM) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | 12 o'clock |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| warna paparan | 16.7M 50% NTSC |
| jenis lampu | 5S2P WLED , 25K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | 4-wire Resistive Touch |
| berat panel | TBD |
| permohonan | Automotive Display Industrial |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| 43WVF2A | SII | 4.3 | 480×800 |
| 990000475P | TPO | 4.3 | 800×480 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LMS430HF01 | Samsung | 4.3 | |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
