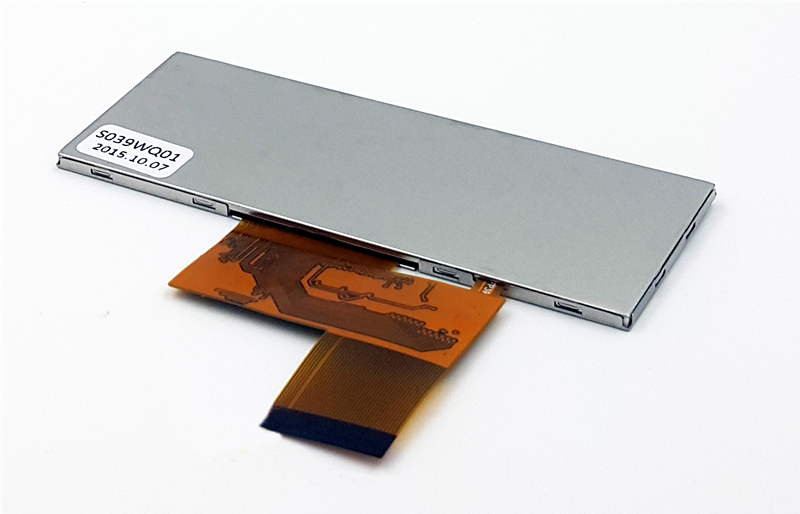

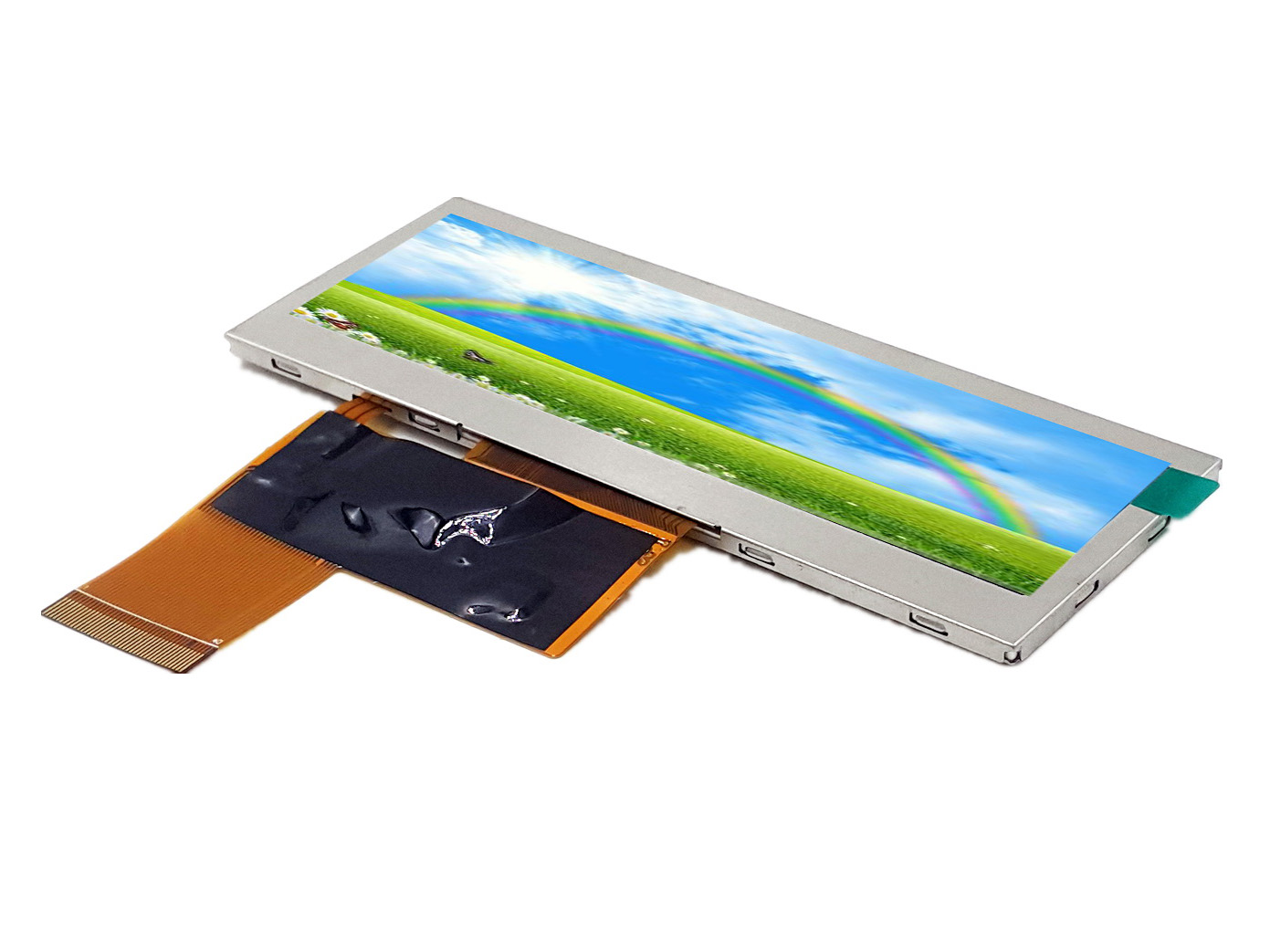

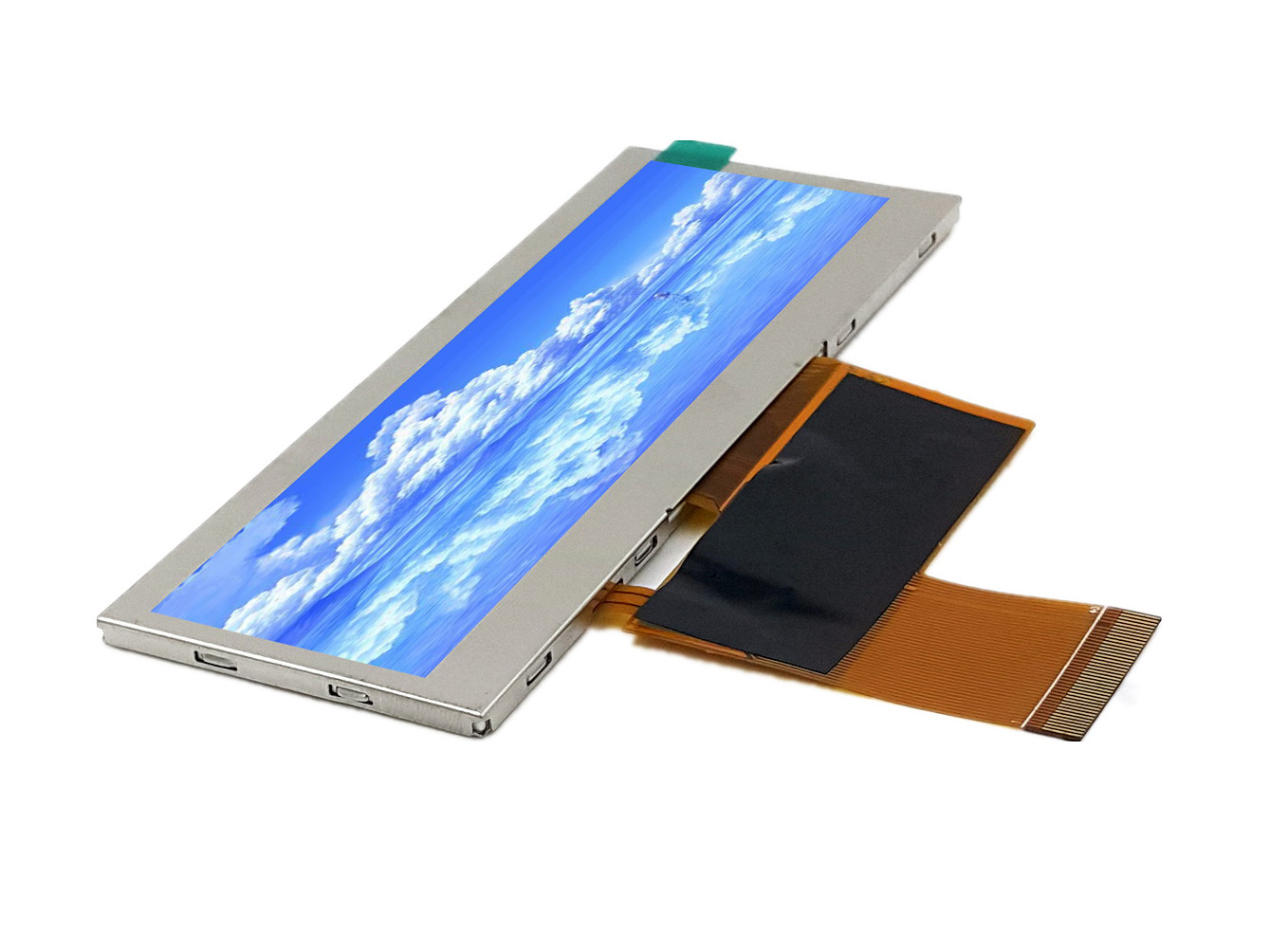

| Nombor Bahagian | S039WQ01 |
| Jenama | CDTECH |
| Saiz | 3.9 |
| Permohonan | Industrial Stretched |
| Resolusi | 480×128 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | 5S2P |
| Antara muka | |
| pengilang | CDTECH |
| nama model | S039WQ01 |
| saiz skrin | 3.9 inch (1/2 cut of 4.3") |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 480(RGB)×128 128PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 95.04 × 25.34 (H×V) |
| garis besar (mm) | 105.5 × 40.64 × 3.15 (H×V×D) |
| kawasan bezel (mm) | 98.04 × 28.34 (H×V) |
| rawatan | - |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 500 : 1 (Typ.) (TM) |
| sudut pandangan | 65/65/55/65 (Typ.)(CR≥10) |
| tindak balas | 10/15 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | 12 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 16.7M 50% NTSC |
| lampu latar | 5S2P WLED , 30K hours , No Driver |
| jisim | TBD |
| digunakan untuk | Industrial Stretched Bar LCD Automotive Display |
| kadar segar semula | - |
| skrin sentuh | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
