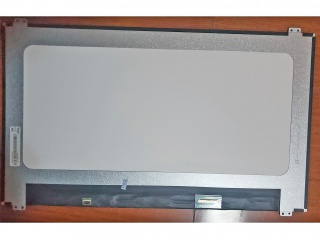

| Nombor Bahagian | NV166FHM-N41 |
| Jenama | BOE |
| Saiz | 16.6 |
| Permohonan | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | 11S6P |
| Antara muka | eDP |
| jenama panel | BOE |
| model panel | NV166FHM-N41 (BOE084F) |
| saiz panel | 16.6" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×1080, FHD, 132PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 368.64(W)×207.36(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 375.14(W)×231.66(H) ×5.4(D) mm |
| permukaan | Antiglare |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 1200:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | ADS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 9 (Typ.)(Tr+Td); 3 (Typ.)(G to G) |
| warna paparan | 16.7M 72% NTSC |
| jenis lampu | 11S6P WLED , 15K hours , With LED Driver |
| kekerapan | 144Hz |
| skrin sentuh | Without |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| permohonan | Laptop Gaming |
| antara muka isyarat | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
