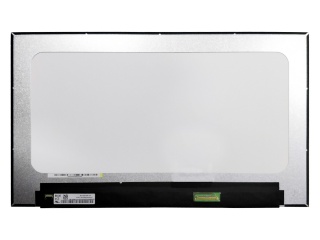

| Nombor Bahagian | NV156FHM-T05 |
| Jenama | BOE |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | 10S4P |
| Antara muka | eDP |
| pengilang | BOE |
| nama model | NV156FHM-T05 (BOE07F2) |
| saiz skrin | 15.6 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 344.16 × 193.59 (H×V) |
| garis besar (mm) | 350.66 × 205.69 × 5.4 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 800 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 30 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 262K 45% NTSC |
| lampu latar | 10S4P WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Bent, T≤3.0mm) |
| digunakan untuk | Laptop |
| kadar segar semula | 60Hz |
| skrin sentuh | On-Cell Touch |
| jenis isyarat | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 40 pins |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XW02 V3 | AUO | 15.6 | 1366×768 |
| G156HTN02.1 | AUO | 15.6 | 1920×1080 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| M156B1-L01 | Innolux | 15.6 | 1366×768 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
