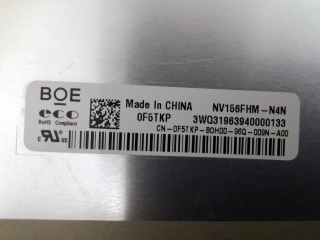

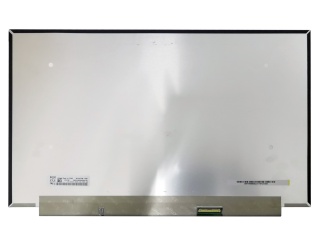

| Nombor Bahagian | NV156FHM-N4N |
| Jenama | BOE |
| Saiz | 15.6 |
| Permohonan | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | 8S6P |
| Antara muka | eDP |
| jenama panel | BOE |
| saiz panel | 15.6" |
| resolusi | 1920(RGB)×1080, FHD, 141PPI |
| kawasan paparan | 344.16(W)×193.59(H) mm |
| saiz garis besar | 350.66(W)×216.25(H) ×3.2(D) mm |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 72% NTSC |
| kekerapan | 144Hz |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| antara muka isyarat | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | NV156FHM-N4N (BOE084A) |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare (Haze 25%) |
| nisbah kontras | 1200:1 (Typ.) (TM) |
| mod paparan | HADS, Normally Black, Transmissive |
| masa tindak balas | 9 (Typ.)(Tr+Td); 7 (Typ.)(G to G) |
| jenis lampu | 8S6P WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop Gaming |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| LP156WD1-TLB2 | LG Display | 15.6 | 1600×900 |
| LP156WF3-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WHA-SLA2 | LG Display | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
