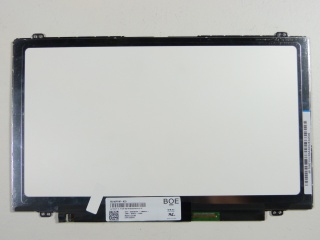

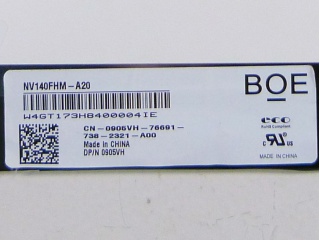

| Nombor Bahagian | NV140FHM-A20 |
| Jenama | BOE |
| Saiz | 14.0 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | 9S5P |
| Antara muka | eDP |
| jenama panel | BOE |
| saiz panel | 14.0" |
| resolusi | 1920(RGB)×1080, FHD, 157PPI |
| kawasan paparan | 309.31(W)×173.99(H) mm |
| saiz garis besar | 326.18(W)×205.1(H) ×5.2(D) mm |
| kecerahan | 270 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 262K 72% NTSC |
| kekerapan | 60Hz |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| antara muka isyarat | eDP (2 Lanes) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | NV140FHM-A20 (BOE0652) |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Hard coating (7H) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | ADS, Normally Black, Transmissive |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| jenis lampu | 9S5P WLED , 15K hours , With LED Driver |
| skrin sentuh | PCAP, Optical Bonding |
| permohonan | Laptop |
