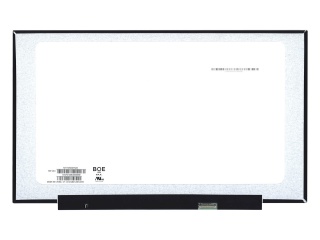

| Nombor Bahagian | NT173WDM-N25 |
| Jenama | BOE |
| Saiz | 17.3 |
| Permohonan | Laptop |
| Resolusi | 1600×900 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 10S5P |
| Antara muka | eDP |
| jenama panel | BOE |
| model panel | NT173WDM-N25 (BOE0954) |
| saiz panel | 17.3" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1600(RGB)×900, HD+, 106PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 382.08(W)×214.92(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 389.88(W)×236.52(H) ×3.5(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) (TM) |
| sudut pandangan | 45/45/20/40 (Min.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | 6 o'clock |
| masa tindak balas | 12 (Typ.)(Tr+Td) |
| warna paparan | 262K 60% NTSC |
| jenis lampu | 10S5P WLED , 15K hours , With LED Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| permohonan | Laptop |
| antara muka isyarat | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| B173RW01 V2 HW7A | AUO | 17.3 | 1600×900 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LTN173KT01-J01 | Samsung | 17.3 | 1600×900 |
| N173FGE-E23 | Innolux | 17.3 | 1600×900 |
| N173FGE-L23 | Innolux | 17.3 | 1600×900 |
