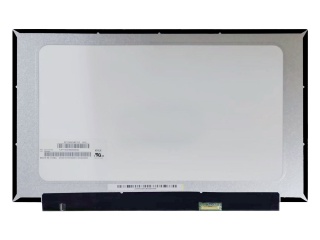

| Nombor Bahagian | NT156WHM-T02 |
| Jenama | BOE |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1366×768 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 9S4P |
| Antara muka | |
| pengilang | BOE |
| nama model | NT156WHM-T02 (BOE0816) |
| saiz skrin | 15.6 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1366(RGB)×768 (WXGA) 100PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 344.232 × 193.536 (H×V) |
| garis besar (mm) | 350.96 × 216.75 × 3.4 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 500 : 1 (Typ.) (TM) |
| sudut pandangan | 45/45/20/40 (Typ.)(CR≥10) |
| tindak balas | 12 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | 6 o'clock |
| mod kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 45% NTSC |
| lampu latar | 9S4P WLED , 15K hours , With LED Driver |
| bentuk garis besar | Flat (PCBA Flat, T3.4~4.0mm) |
| digunakan untuk | Laptop |
| kadar segar semula | 60Hz |
| skrin sentuh | On-Cell Touch |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-D02 | Samsung | 15.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
| NT156WHM-N10 | BOE | 15.6 | 1366×768 |
| NT156WHM-N12 | BOE | 15.6 | 1366×768 |
| NT156WHM-N33 | BOE | 15.6 | 1366×768 |
| NT156WHM-N42 | BOE | 15.6 | 1366×768 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
