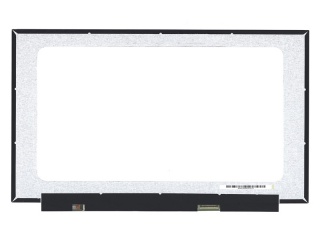

| Nombor Bahagian | NT156FHM-N62 |
| Jenama | BOE |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 9S4P |
| Antara muka | eDP |
| pengilang | BOE |
| saiz skrin | 15.6 inch |
| nombor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| kawasan aktif (mm) | 344.16 × 193.59 (H×V) |
| kawasan bezel (mm) | - |
| kecerahan | 220 cd/m² (Typ.) |
| sudut pandangan | 45/45/20/40 (Typ.)(CR≥10) |
| pandangan yang baik di | 6 o'clock |
| kedalaman warna | 262K 45% NTSC |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| kadar segar semula | 60Hz |
| jenis isyarat | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | NT156FHM-N62 (BOE07F1) |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 350.66 × 216.25 × 3.2 (H×V×D) |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 500 : 1 (Typ.) (TM) |
| tindak balas | 12 (Typ.)(Tr+Td) ms |
| mod kerja | TN, Normally White, Transmissive |
| lampu latar | 9S4P WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop |
| skrin sentuh | Without |
