| Nombor Bahagian | NT133WHM-N23 |
| Jenama | BOE |
| Saiz | 13.3 |
| Permohonan | Laptop |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 9S4P |
| Antara muka | eDP |
| jenama panel | BOE |
| saiz panel | 13.3" |
| resolusi | 1366(RGB)×768, WXGA, 118PPI |
| kawasan paparan | 293.42(W)×164.97(H) mm |
| saiz garis besar | 306.3(W)×188.75(H) ×3.6(D) mm |
| kecerahan | 220 cd/m² (Typ.) |
| sudut pandangan | 45/45/20/40 (Typ.)(CR≥10) |
| pandangan terbaik pada | 6 o'clock |
| warna paparan | 262K 48% NTSC |
| kekerapan | 60Hz |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| antara muka isyarat | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |

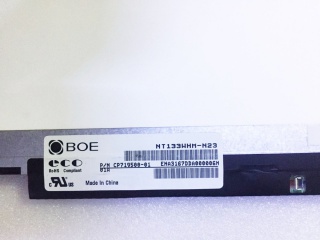

| model panel | NT133WHM-N23 (BOE06D8) |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare |
| nisbah kontras | 500:1 (Typ.) (TM) |
| mod paparan | TN, Normally White, Transmissive |
| masa tindak balas | 12 (Typ.)(Tr+Td) |
| jenis lampu | 9S4P WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop |
