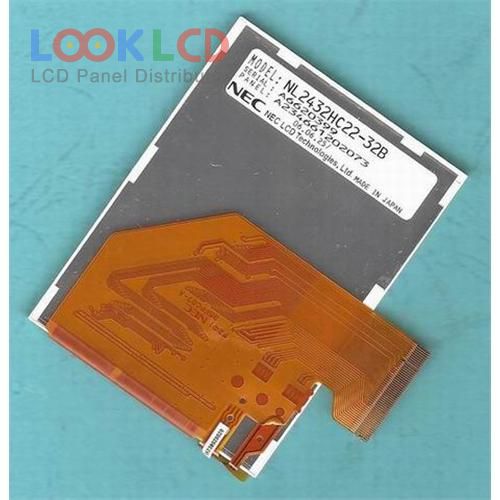

| Nombor Bahagian | NL2432HC22-32B |
| Jenama | NLT |
| Saiz | 3.5 |
| Permohonan | PDA |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | 100 |
| CR | 70:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | NEC |
| model panel | NL2432HC22-32B |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mod paparan | TN, Normally White, Transflective |
| kawasan aktif | 53.64×71.52 mm |
| garis besar | 64×85 mm |
| permukaan | Antiglare |
| kecerahan | 100 cd/m² (Typ.) |
| nisbah kontras | 70:1 (Typ.)(Transmissive) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 39 (Typ.)(Tr+Td) |
| sudut pandangan | 25/25/25/20 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | WLED |
| antara muka isyarat | CMOS (1 ch, 6-bit) |
| voltan masukan | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| permohonan | PDA |
