| Nombor Bahagian | NE156QUM-NZ3 |
| Jenama | BOE |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 3840×2160 |
| Komposisi | LCM , Oxide TFT-LC |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | 12S6P |
| Antara muka | eDP |
| pengilang | BOE |
| saiz skrin | 15.6 inch |
| nombor piksel | 3840(RGB)×2160 (UHD) 283PPI |
| kawasan aktif (mm) | 344.218 × 193.622 (H×V) |
| kawasan bezel (mm) | - |
| kecerahan | 400 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 16.7M 100% sRGB |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| kadar segar semula | 120Hz |

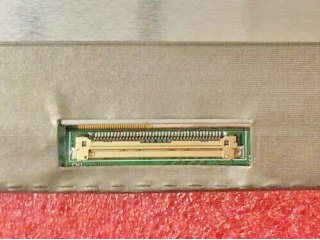

| jenis isyarat | eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | NE156QUM-NZ3 (BOE08E0) |
| jenis skrin | LCM , Oxide TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 350.66 × 216.12 × 2.6 (H×V×D) |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1200 : 1 (Typ.) (TM) |
| tindak balas | 10 (Typ.)(Tr+Td) ms |
| mod kerja | ADS, Normally Black, Transmissive |
| lampu latar | 12S6P WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop |
| skrin sentuh | Without |
