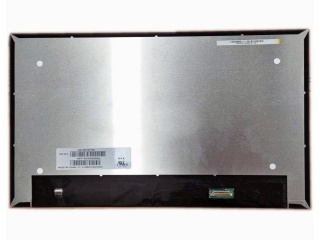

| Nombor Bahagian | NE140FHM-N6L |
| Jenama | BOE |
| Saiz | 14.0 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM, Oxide TFT-LCD |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | 10S6P |
| Antara muka | eDP |
| pengilang | BOE |
| nama model | NE140FHM-N6L (BOE08A3) |
| saiz skrin | 14.0 inch |
| jenis skrin | LCM, Oxide TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 157PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 309.312 × 173.988 (H×V) |
| garis besar (mm) | 314.31 × 185.09 × 3.8 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 1500 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 12 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 100% sRGB |
| lampu latar | 10S6P WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Bent, T≤3.0mm) |
| digunakan untuk | Laptop |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , Connector 30 pins |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
