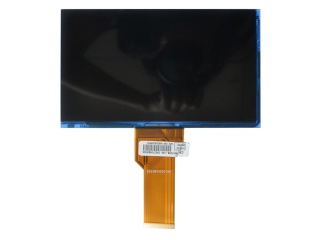

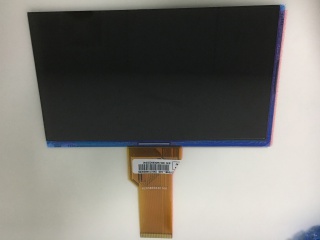

| Nombor Bahagian | NE070NB-04G |
| Jenama | Innolux |
| Saiz | 7.0 |
| Permohonan | Digital Photo Frame |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antara muka | Parallel |
| jenama | Innolux |
| saiz pepenjuru | 7.0 inch |
| format piksel | 800(RGB)×480 [WVGA] 134PPI |
| kawasan aktif | 154.08(H)×85.92(V) mm |
| kawasan bezel | - |
| kecerahan | 0 cd/m² |
| arah pandang | - |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10) |
| ketebalan plat | 0.50+0.50 mm |
| warna sokongan | 16.7M |
| berat badan | 47.0g (Typ.) |
| kadar bingkai | 60Hz |
| perincian d-ic | COG Built-in 1 source + 1 gate chips |
| jenis antara muka | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| bekalan kuasa | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| persekitaran | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | NE070NB-04G |
| menaip | a-Si TFT-LCD , CELL |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 162.5(H)×96.62(V) ×1.43(D) mm |
| rawatan | Antiglare |
| nisbah kontras | 500:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | TN, Normally White, Transmissive |
| penghantaran | 4.61% (Typ.)(with Polarizer) |
| sumber cahaya | No B/L |
| direka untuk | Digital Photo Frame |
| panel sentuh | Without |
