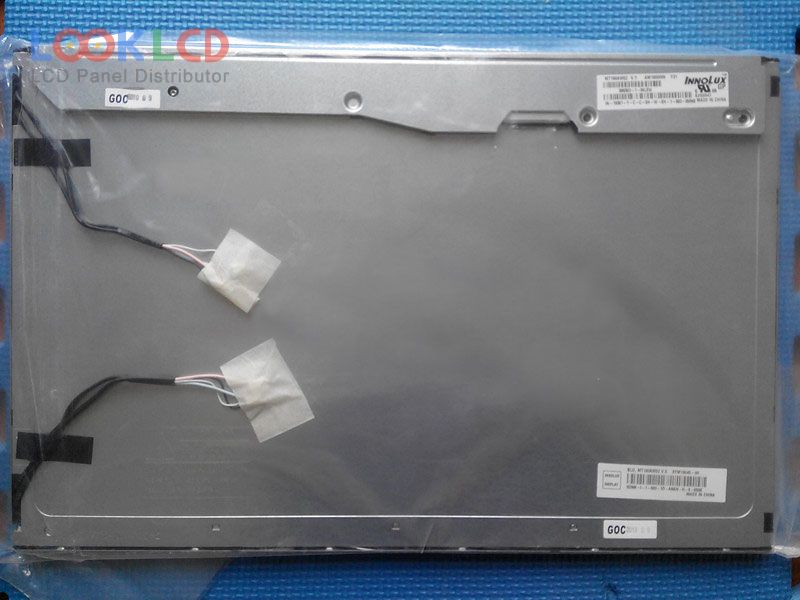

MT190AW02 V.Y

MT190AW02 V.Y
MT190AW02 V.Y
MT190AW02 V.Y
MT190AW02 V.Y thumb MT190AW02 V.Y thumb MT190AW02 V.Y thumb
Jenama
Innolux
Saiz
19.0
Permohonan
DMPC
Resolusi
1440×900
Komposisi
LCM
Kecerahan
300
CR
1000:1
Warna
16.7M
Lampu latar
CCFL
Antara muka
LVDS
In Stock
40
Spesifikasi

Nombor Bahagian MT190AW02 V.Y
JenamaInnolux
Saiz19.0
PermohonanDMPC
Resolusi1440×900
KomposisiLCM
Kecerahan300
CR1000:1
Warna16.7M
Lampu latarCCFL
Antara mukaLVDS
jenama panelINNOLUX
model panelMT190AW02 V.Y
jenis panel a-Si TFT-LCD , LCM
saiz panel19.0 inch
resolusi1440(RGB)×900 , WXGA+
mod paparanTN, Normally White, Transmissive
kawasan aktif408.24×255.15 mm
garis besar428×278×16.5 mm
permukaanAntiglare (Haze 25%), Hard coating (3H)
kecerahan300 cd/m² (Typ.)
nisbah kontras1000:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC), CIE193172%
masa tindak balas1.5/3.5 (Typ.)(Tr/Td)
sudut pandangan85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu4 pcsCCFLWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
Model Keluarga
LM190E08-TLL1 LG Display 19.0 1280×1024
MT190AW01 V.5 Innolux 19.0 1440×900
MT190AW01 V.7 Innolux 19.0 1440×900
MT190AW01 V.C Innolux 19.0 1440×900
MT190AW02 V.0 Innolux 19.0 1440×900
MT190AW02 V.4 Innolux 19.0 1440×900
MT190AW02 V.A Innolux 19.0 1440×900
MT190AW02 V.V Innolux 19.0 1440×900
MT190AW02 V.W Innolux 19.0 1440×900
MT190AW02 V.Y Innolux 19.0 1440×900
