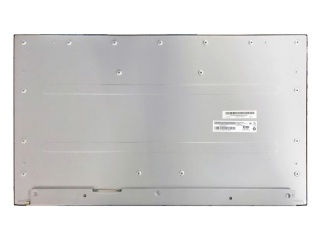

| Nombor Bahagian | M270HAN01.2 |
| Jenama | AUO |
| Saiz | 27.0 |
| Permohonan | Desktop Monitor |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | AUO |
| saiz pepenjuru | 27.0 inch |
| format piksel | 1920(RGB)×1080 [FHD] 81PPI |
| kawasan aktif | 597.888(H)×336.312(V) mm |
| kawasan bezel | - |
| kecerahan | 300 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| warna sokongan | 16.7M 72% NTSC |
| berat badan | 3.14Kgs (Typ.) |
| kadar bingkai | 60Hz |
| jenis antara muka | LVDS (2 ch, 8-bit) , 30 pins Connector |
| bekalan kuasa | 5.0V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | M270HAN01.2 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 607.1(H)×354.1(V) ×13.4(D) mm |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| masa tindak balas | 14 (Typ.)(G to G) |
| mod operasi | AHVA, Normally Black, Transmissive |
| sumber cahaya | WLED [17S4P] , 30K hours , W/O Driver |
| direka untuk | Desktop Monitor |
| panel sentuh | Without |
