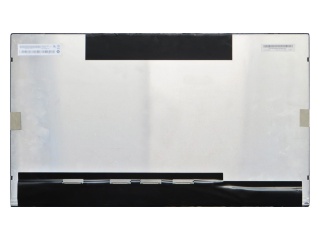

| Nombor Bahagian | M270DTN01.00E |
| Jenama | AUO |
| Saiz | 27.0 |
| Permohonan | Desktop Monitor Gami |
| Resolusi | 2560×1440 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 18S4P |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | M270DTN01.00E |
| saiz panel | 27.0" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 2560(RGB)×1440, Quad-HD, 108PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 596.736(W)×335.664(H) mm |
| pembukaan bezel | 601.6(W)×340.15(H) mm |
| saiz garis besar | 613.6(W)×356.85(H) ×10.9(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| sudut pandangan | 85/85/80/80 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | - |
| masa tindak balas | 3.5/1.5 (Typ.)(Tr/Td) |
| warna paparan | 16.7M 72% NTSC |
| jenis lampu | 18S4P WLED , 30K hours , Without Driver |
| kekerapan | 165Hz |
| skrin sentuh | Without |
| berat panel | 2.20/2.31Kgs (Typ./Max.) |
| permohonan | Desktop Monitor Gaming |
| antara muka isyarat | LVDS (8 ch, 8-bit) , 130 pins Connector |
| voltan masukan | 12.0V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LM270WF5-SLN2 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SLC1 | LG Display | 27.0 | 2560×1440 |
| LM270WQ3-SLA1 | LG Display | 27.0 | 2560×1440 |
| LTM270DL02 | Samsung | 27.0 | 2560×1440 |
| M270DTN01.0 | AUO | 27.0 | 2560×1440 |
| M270DTN01.1 | AUO | 27.0 | 2560×1440 |
| M270DTN01.3 | AUO | 27.0 | 2560×1440 |
| M270HGE-L10 | Innolux | 27.0 | 1920×1080 |
| M270HHF-L10 | Innolux | 27.0 | 1920×1080 |
| M270HW01 V0 | AUO | 27.0 | 1920×1080 |
