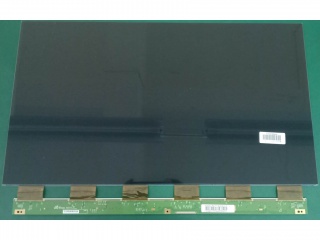

| Nombor Bahagian | M236HJJ-P02 Rev.C3 |
| Jenama | Innolux |
| Saiz | 23.6 |
| Permohonan | Desktop Monitor |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antara muka | LVDS |
| jenama panel | Innolux |
| saiz panel | 23.6" |
| resolusi | 1920(RGB)×1080, FHD, 93PPI |
| kawasan paparan | 521.28(W)×293.22(H) mm |
| saiz garis besar | 534.28(W)×306.252(H) mm |
| kecerahan | 0 cd/m² |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| kedalaman kaca | - |
| warna paparan | 16.7M 72% NTSC |
| kekerapan | 60Hz |
| ic pemandu | COF Built-in 6 source chips |
| berat panel | 512/530g (Typ./Max.) |
| antara muka isyarat | LVDS (2 ch, 8-bit) , 30 pins Connector |
| voltan masukan | 5.0V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | M236HJJ-P02 Rev.C3 |
| jenis panel | a-Si TFT-LCD , CELL |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| nisbah kontras | 3000:1 (Typ.) (TM) |
| mod paparan | Super MVA, Normally Black, Transmissive |
| masa tindak balas | 25 (Typ.)(G to G) |
| ketransmisian | 4.6% (Typ.)(with Polarizer) |
| jenis lampu | No B/L |
| skrin sentuh | Without |
| permohonan | Desktop Monitor |
