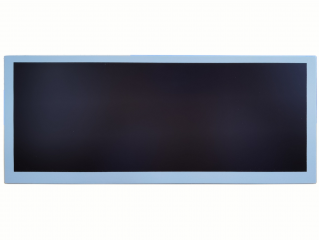

| Nombor Bahagian | M102AWF2 R2 |
| Jenama | IVO |
| Saiz | 10.3 |
| Permohonan | Automotive Display |
| Resolusi | 1920×720 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S3P |
| Antara muka | LVDS |
| jenama panel | IVO |
| model panel | M102AWF2 R2 |
| saiz panel | 10.3" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×720, 200PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 243.65(W)×91.37(H) mm |
| pembukaan bezel | 245.65(W)×93.66(H) mm |
| saiz garis besar | 262.04(W)×110.3(H) ×16(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 800 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | IPS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| warna paparan | 16.7M 75% NTSC |
| jenis lampu | 8S3P WLED , 10K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | 380g (Max.) |
| permohonan | Automotive Display |
| antara muka isyarat | LVDS (2 ch, 8-bit) , 50 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
