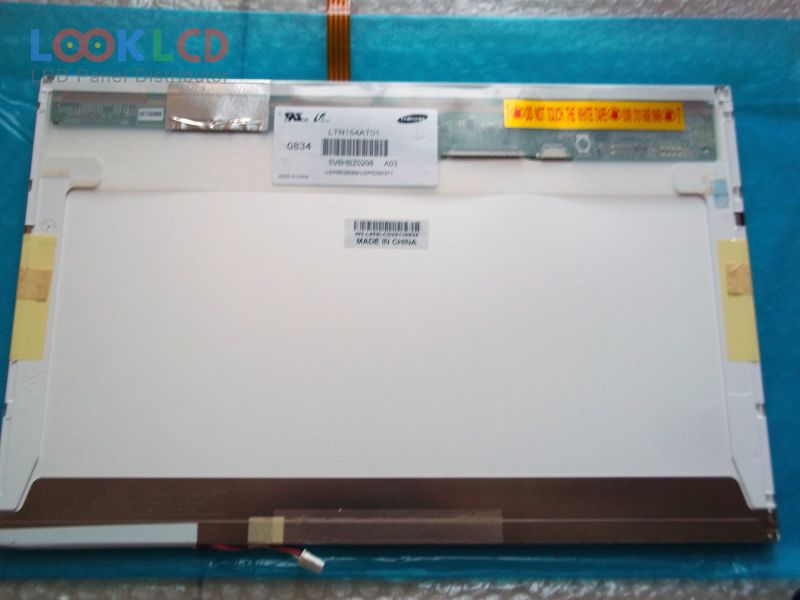

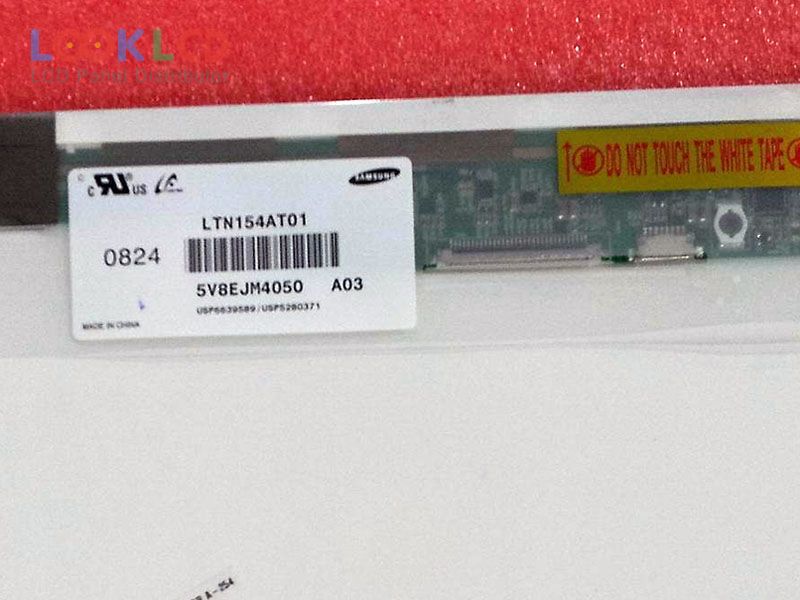

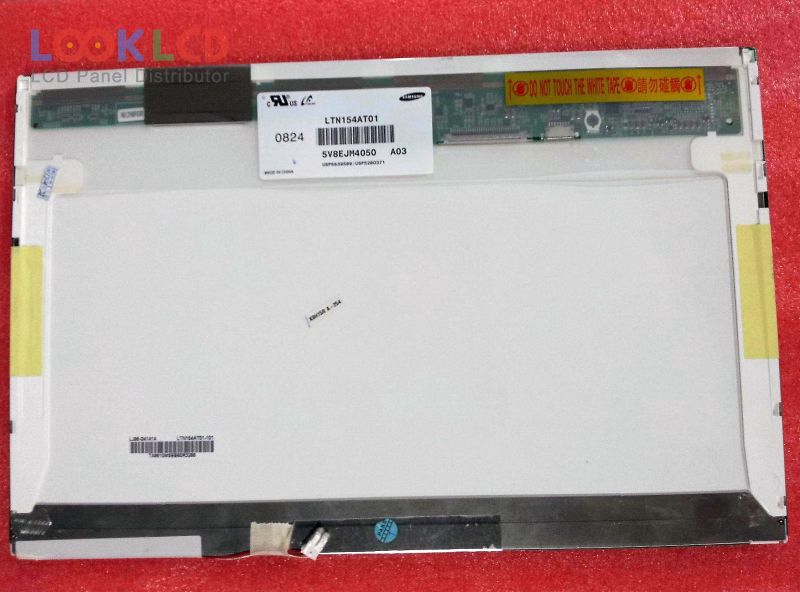

| Nombor Bahagian | LTN154AT01-A03 |
| Jenama | Samsung |
| Saiz | 15.4 |
| Permohonan | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN154AT01-A03 20 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.4 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 331.2×207 mm |
| garis besar | 344×222×6.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Min.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 8 (Typ.)(Tr+Td) |
| sudut pandangan | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154AT01-A03 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-H01 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-L01 | Samsung | 15.4 | 1280×800 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-102 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| B133XW03 V3 | AUO | 13.3 | 1366×768 |
| LP133WH2-TLN4 | LG Display | 13.3 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTN133AT01-003 | Samsung | 13.3 | 1280×800 |
| LTN160AT01-F02 | Samsung | 16.0 | 1366×768 |
| N121I3-L01 | Innolux | 12.1 | 1280×800 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
