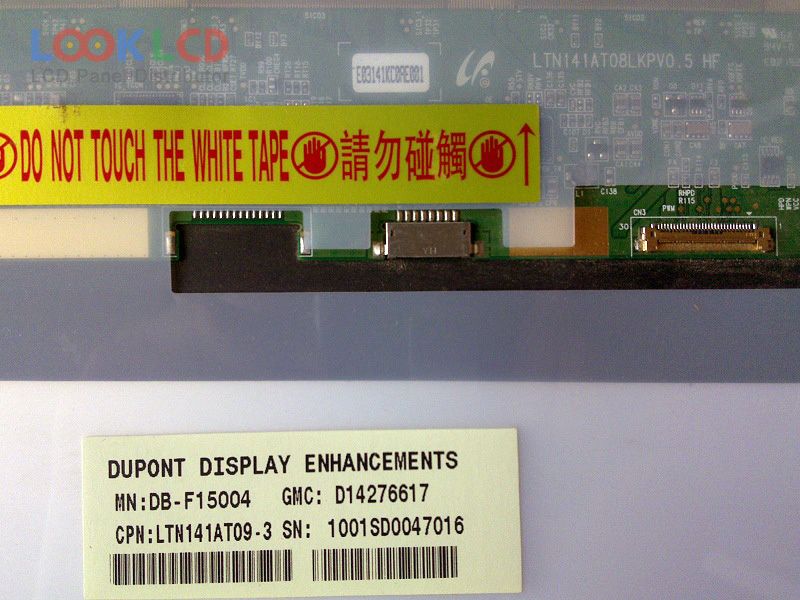

| Nombor Bahagian | LTN141AT09-301 |
| Jenama | Samsung |
| Saiz | 14.1 |
| Permohonan | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 730 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | SAMSUNG |
| model panel | LTN141AT09-301 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 14.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 303.36×189.6 mm |
| garis besar | 319.5×206.5×7.7 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare, Hard coating (7H) |
| kecerahan | 730 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193160% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 55/55/45/45 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | eDP (1 Lane), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
