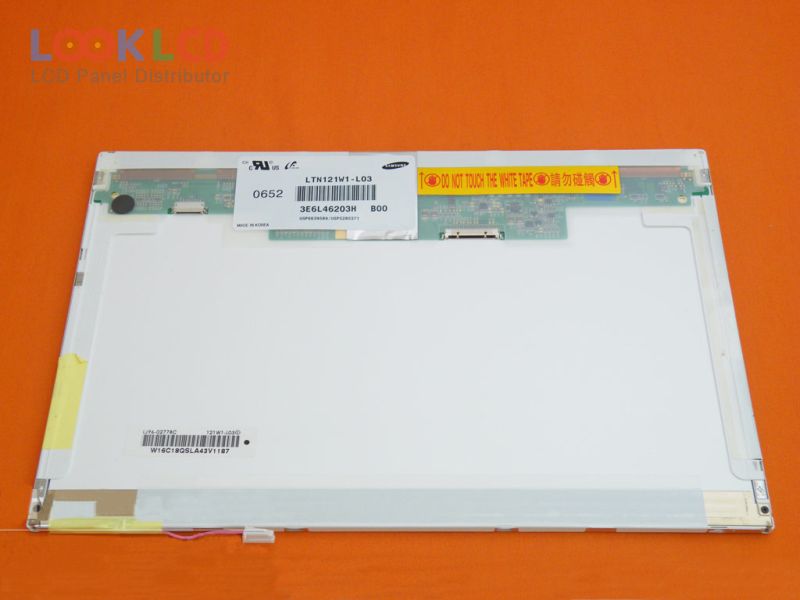

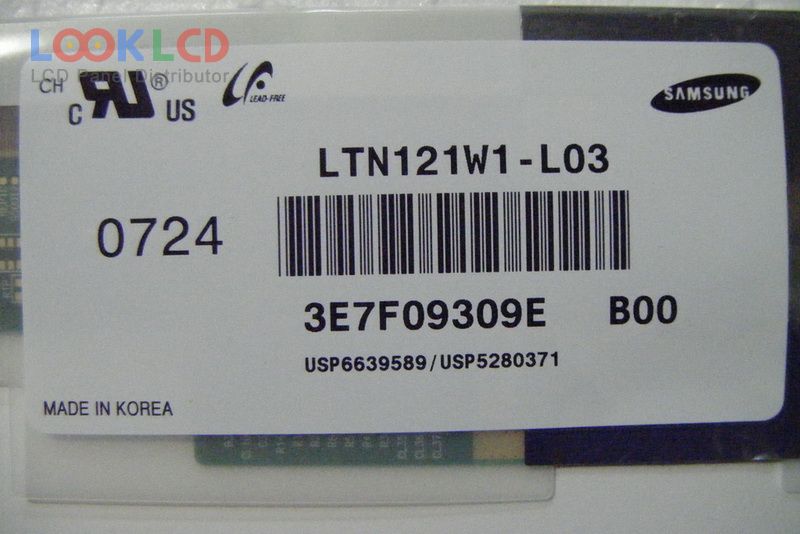

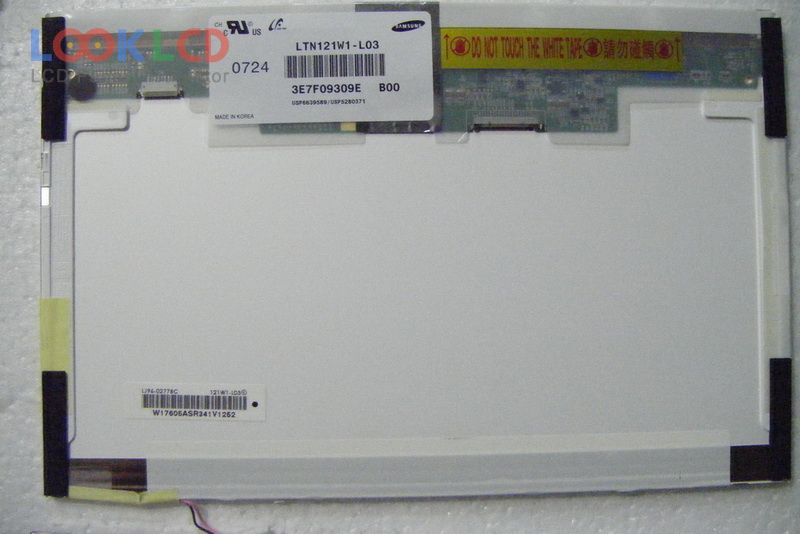

| Nombor Bahagian | LTN121W1-L03 |
| Jenama | Samsung |
| Saiz | 12.1 |
| Permohonan | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN121W1-L03 8 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 261.12×163.2 mm |
| garis besar | 275.8×178×5.5 mm |
| permukaan | Glare (Haze 0%), Hard coating (2H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
