| Nombor Bahagian | LTI550HN16 |
| Jenama | SAMSUNG |
| Saiz | 55 |
| Permohonan | Video Wall |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 4000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| pengilang | SAMSUNG |

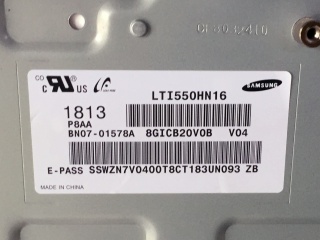

| nama model | LTI550HN16 |
| saiz skrin | 55 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 40PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 1209.6 × 680.4 (H×V) |
| garis besar (mm) | 1211.6 × 682.4 × 68.1 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare (Haze 25%), Hard coating (2H) |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 4000 : 1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| tindak balas | 8 (Typ.)(G to G) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | SVA, Normally Black, Transmissive |
| kedalaman warna | 16.7M 99% sRGB |
| lampu latar | WLED , 50K hours , With LED Driver |
| jahitan penyambung | 2.0 mm (active to active seam) |
| digunakan untuk | Video Wall |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (2 ch, 8-bit) , Connector 51 pins |
| bekalan voltan | 12.0V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
