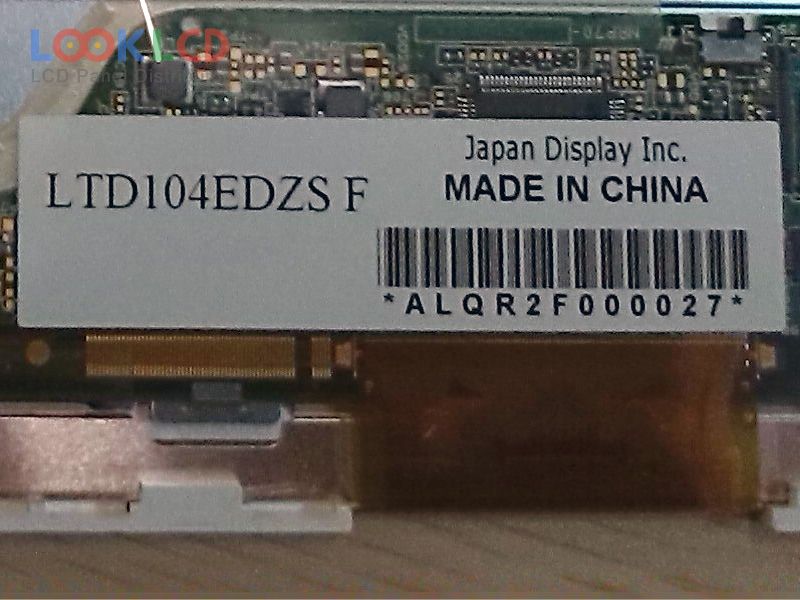

| Nombor Bahagian | LTD104EDZS |
| Jenama | TOSHIBA |
| Saiz | 10.4 |
| Permohonan | NBPC |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 245 |
| CR | 250:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | Toshiba Matsushita |
| model panel | LTD104EDZS |
| jenis panel | LTPS TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 210.4×157.8 mm |
| garis besar | 219.1×173.8×6.3 mm |
| permukaan | Antiglare |
| kecerahan | 245 cd/m² (Typ.) |
| nisbah kontras | 250:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 40/40 (Max.)(Tr/Td) |
| sudut pandangan | |
| jenis lampu | 9S4PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 25 pins |
| voltan masukan | 3.3V (Typ.) |
| rohs: | |
| permohonan | NBPC |
