Samsung LTA320HN02-W lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

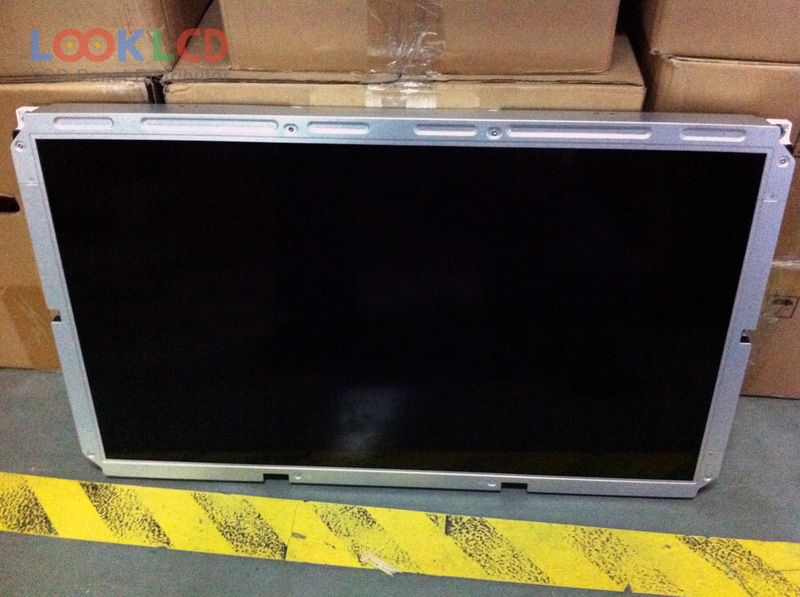

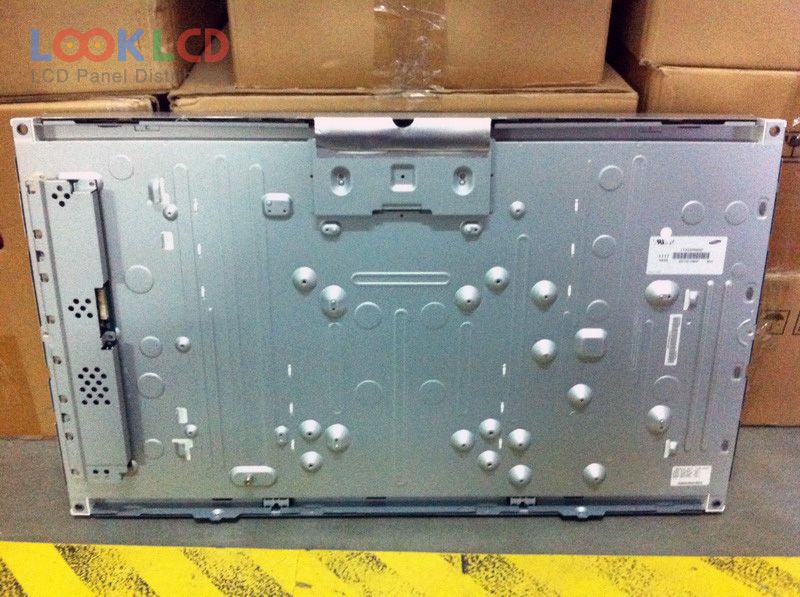

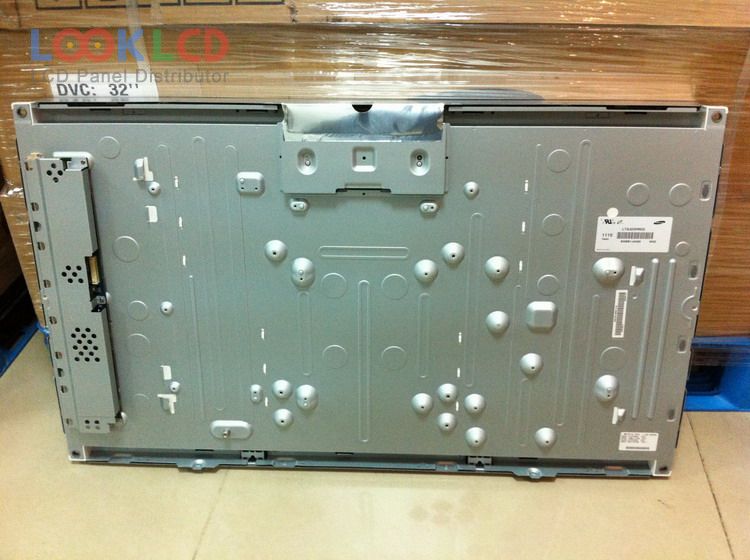

LTA320HN02-W

LTA320HN02-W
LTA320HN02-W
LTA320HN02-W
LTA320HN02-W thumb LTA320HN02-W thumb LTA320HN02-W thumb
Jenama
Samsung
Saiz
31.5
Permohonan
LCTV
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
430
CR
5000:1
Warna
1.07B
Lampu latar
CCFL
Antara muka
LVDS
In Stock
3845
Spesifikasi

Nombor Bahagian LTA320HN02-W
JenamaSamsung
Saiz31.5
PermohonanLCTV
Resolusi1920×1080
KomposisiLCM
Kecerahan430
CR5000:1
Warna1.07B
Lampu latarCCFL
Antara mukaLVDS
jenama panelSAMSUNG
model panelLTA320HN02-W
jenis panel a-Si TFT-LCD , LCM
saiz panel31.5 inch
resolusi1920(RGB)×1080 , FHD
mod paparanSVA, Normally Black, Transmissive
kawasan aktif698.4×392.85 mm
garis besar760×450 mm
permukaanAntiglare (Haze 5.5%), Hard coating (2H)
kecerahan430 cd/m² (Typ.)
nisbah kontras5000:1 (Typ.)
warna paparan1.07B (8-bit + Hi-FRC), CIE193172%
masa tindak balas12/8 (Typ.)(Tr/Td); 8 (Typ.)(MPRT)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu4 pcsCCFLEmbedded (Inverter)
antara muka isyaratLVDS (2 ch, 10-bit), 51 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
Model Keluarga
LTA320AN01-C Samsung 31.5 1366×768
LTA320AP05 Samsung 31.5 1366×768
LTA320AP16 Samsung 31.5 1366×768
LTA320AP18 Samsung 31.5 1366×768
LTA320AP21 Samsung 31.5 1366×768
LTA320HJ03 Samsung 31.5 1920×1080
LTA320HN03-W Samsung 31.5 1920×1080
LTA320W1-L02 Samsung 31.5 1280×768
LTA320W2-L03 Samsung 31.5 1366×768
LTA320WT-LF1 Samsung 31.5 1366×768
