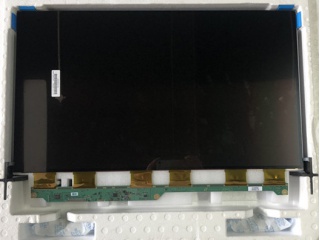

| Nombor Bahagian | LSM236HP04-M02 |
| Jenama | SAMSUNG |
| Saiz | 23.6 |
| Permohonan | Desktop Monitor |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antara muka | |
| jenama panel | SAMSUNG |
| saiz panel | 23.6" |
| resolusi | 1920(RGB)×1080, FHD, 93PPI |
| kawasan paparan | 521.395(W)×293.285(H) mm |
| saiz garis besar | 532.4(W)×304.94(H) ×1.1(D) mm |
| kecerahan | 0 cd/m² |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| kedalaman kaca | - |
| warna paparan | 16.7M 69% NTSC |
| kekerapan | 60Hz |
| berat badan | 420g (Typ.) |
| model panel | LSM236HP04-M02 |
| jenis panel | a-Si TFT-LCD , CELL |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare |
| nisbah kontras | 3000:1 (Typ.) (TM) |
| mod paparan | PVA, Normally Black, Transmissive |
| masa tindak balas | 21 (Typ.)(Tr+Td) |
| ketransmisian | 3.39% (Typ.)(with Polarizer) |
| jenis lampu | No B/L |
| skrin sentuh | Without |
| permohonan | Desktop Monitor |
