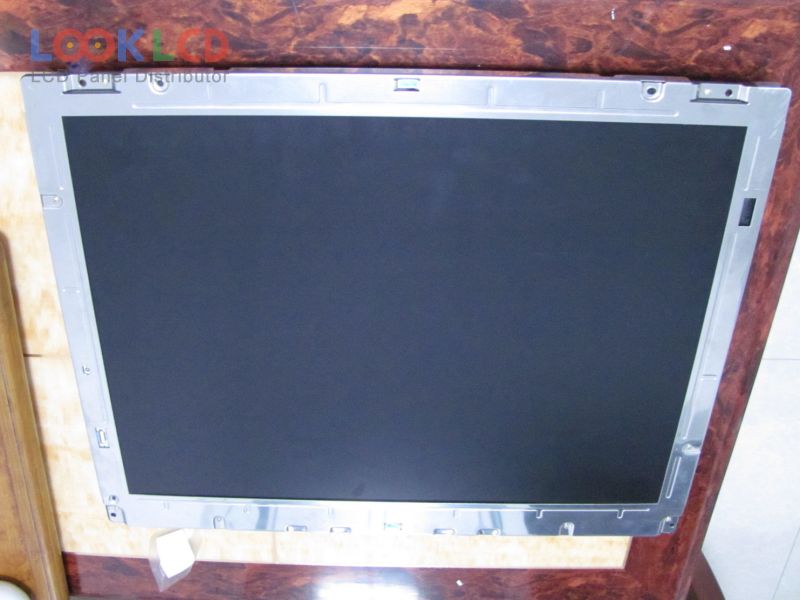

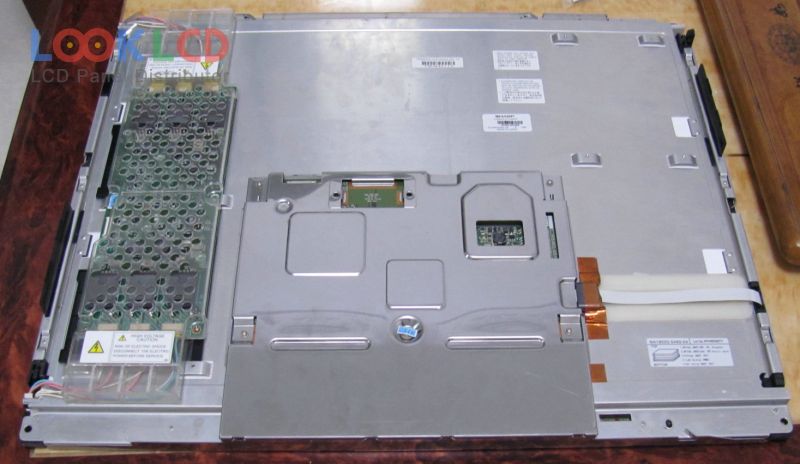

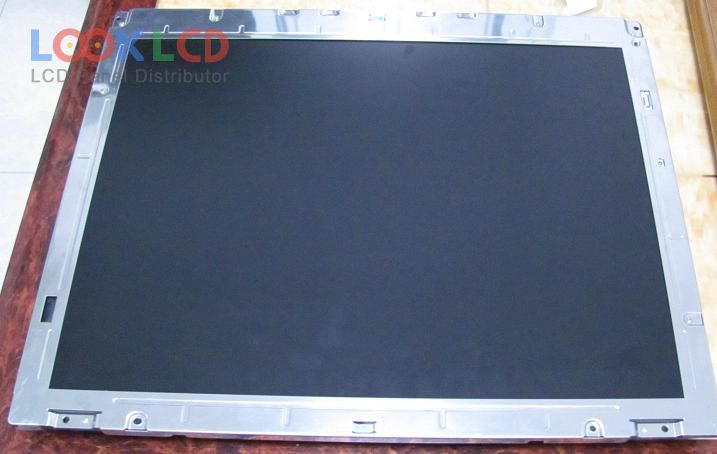

| Nombor Bahagian | LQ231U1LW01 |
| Jenama | SHARP |
| Saiz | 23.1 |
| Permohonan | IA |
| Resolusi | 1600×1200 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | OpenLDI |
| jenama panel | SHARP |
| model panel | LQ231U1LW01 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 23.1 inch |
| resolusi | 1600(RGB)×1200 , UXGA |
| mod paparan | MVA, Normally Black, Transmissive |
| kawasan aktif | 470.4×352.8 mm |
| garis besar | 530×432.8×33.5 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 20/10 (Typ.)(Tr/Td); 15 (Typ.)(G to G) |
| sudut pandangan | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| jenis lampu | 6 pcsCCFLEmbedded (Inverter) |
| antara muka isyarat | OpenLDI, 31 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | IA |
