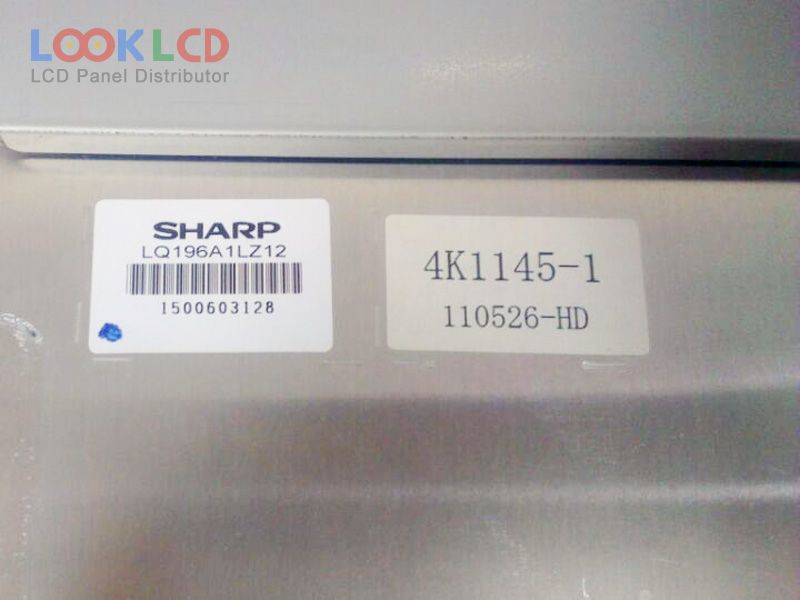

| Nombor Bahagian | LQ196A1LZ12 |
| Jenama | SHARP |
| Saiz | 19.6 |
| Permohonan | GM |
| Resolusi | 1600×1200 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SHARP |
| model panel | LQ196A1LZ12 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 19.6 inch |
| resolusi | 1600(RGB)×1200 , UXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 398.4×298.8 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 16.2M (6-bit + FRC) |
| masa tindak balas | 15/10 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | WLED |
| antara muka isyarat | LVDS (2 ch, 8-bit) |
| rohs: | |
| permohonan | GM |
| AA121TD02 | Mitsubishi | 12.1 | 1280×800 |
| G154I1-LE1 | Innolux | 15.4 | 1280×800 |
| G220SVN01.0 | AUO | 22.0 | 1680×1050 |
| G230HAN01.1 | AUO | 23.0 | 1920×1080 |
| LM238WF1-SLK1 | LG Display | 23.8 | 1920×1080 |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LQ150X1LG96 | SHARP | 15.0 | 1024×768 |
| LQ170K1LW02 | SHARP | 17.0 | 1280×768 |
| TX26D30VM1AAA | KOE | 10.2 | 800×256 |
| TX26D89VM2BAA | KOE | 10.2 | 800×256 |
