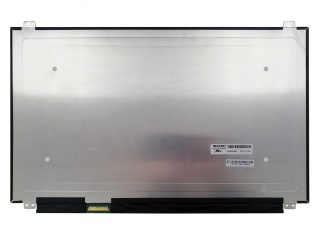

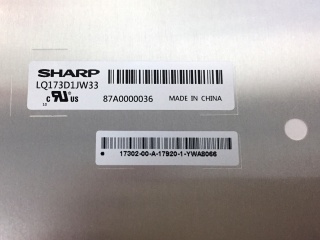

| Nombor Bahagian | LQ173D1JW33 |
| Jenama | Sharp |
| Saiz | 17.3 |
| Permohonan | Laptop |
| Resolusi | 3840×2160 |
| Komposisi | Oxide TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | Sharp |
| saiz panel | 17.3" |
| resolusi | 3840(RGB)×2160, UHD, 255PPI |
| kawasan paparan | 382.12(W)×214.94(H) mm |
| saiz garis besar | 393.69(W)×252.1(H) ×4(D) mm |
| kecerahan | 350 cd/m² (Typ.) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 100% Adobe RGB |
| kekerapan | 60Hz |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| antara muka isyarat | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | LQ173D1JW33 (SHP145A) |
| jenis panel | Oxide TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare (Haze 45%), Hard coating (3H) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| mod paparan | IPS, Normally Black, Transmissive |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 12K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Laptop |
