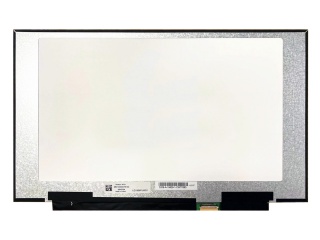

| Nombor Bahagian | LQ156M1JW01 |
| Jenama | Sharp |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM , Oxide TFT-LC |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| pengilang | Sharp |
| nama model | LQ156M1JW01 (SHP14C3) |
| saiz skrin | 15.6 inch |
| jenis skrin | LCM , Oxide TFT-LCD |
| nombor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 344.16 × 193.59 (H×V) |
| garis besar (mm) | 350.66 × 215.54 × 2.6 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Hard coating (2H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| tindak balas | 30 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | New Mode2, Normally Black, Transmissive |
| kedalaman warna | 16.7M 100% sRGB |
| lampu latar | WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| digunakan untuk | Laptop |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JW04 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX01 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX03 | SHARP | 15.6 | 3840×2160 |
| LQ156M1LG21 | SHARP | 15.6 | 1920×1080 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| LQ156T3LW02 | SHARP | 15.6 | 1366×768 |
| LQ156Z1JW03 | SHARP | 15.6 | 3200×1800 |
