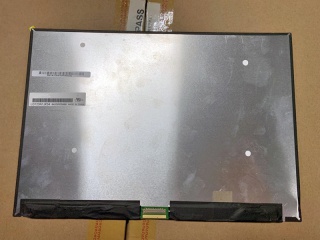

| Nombor Bahagian | LQ123N1JX34 |
| Jenama | Sharp |
| Saiz | 12.3 |
| Permohonan | Laptop |
| Resolusi | 1920×1280 |
| Komposisi | Oxide TFT-LCD, LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | 6S8P |
| Antara muka | eDP |
| jenama panel | Sharp |
| model panel | LQ123N1JX34 (SHP1495) |
| saiz panel | 12.3" |
| jenis panel | Oxide TFT-LCD, LCM |
| resolusi | 1920(RGB)×1280, 188PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 259.2(W)×172.8(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 265.26(W)×185.06(H) ×4.95(D) mm |
| permukaan | - |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 1200:1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| mod paparan | New Mode2, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td); 22 (Typ.)(G to G) |
| warna paparan | 16.7M 100% NTSC |
| jenis lampu | 6S8P WLED , 15K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| gaya bentuk | Slim (PCBA Bent, T≤3.0mm) |
| permohonan | Laptop |
| antara muka isyarat | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
