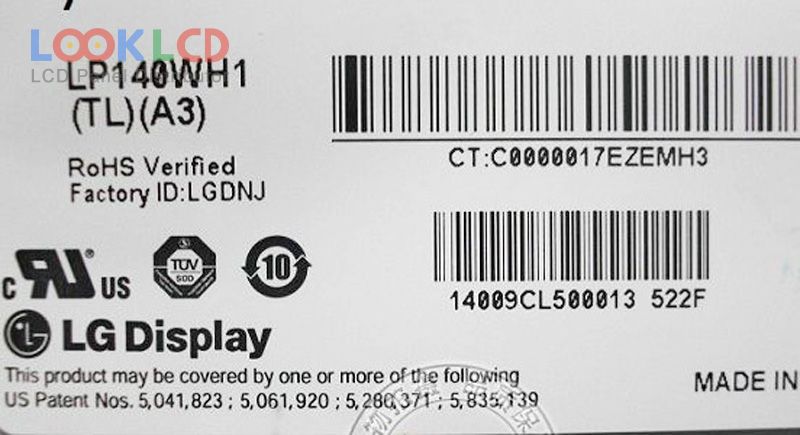

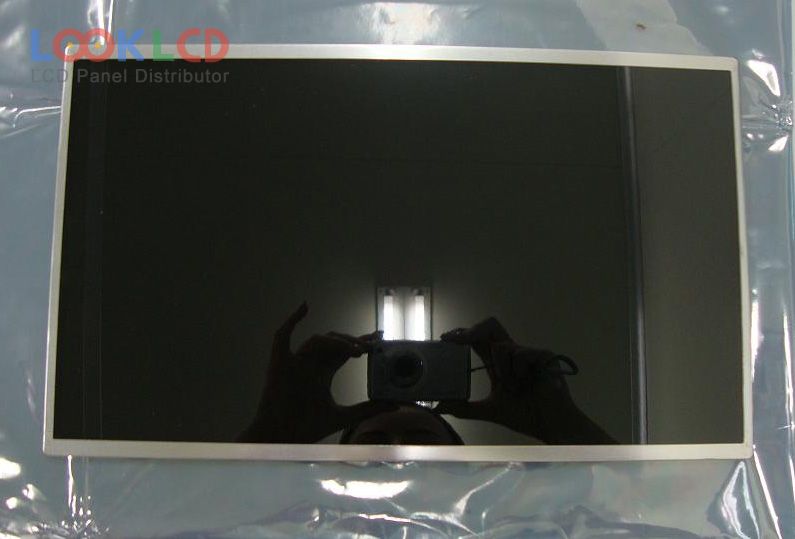

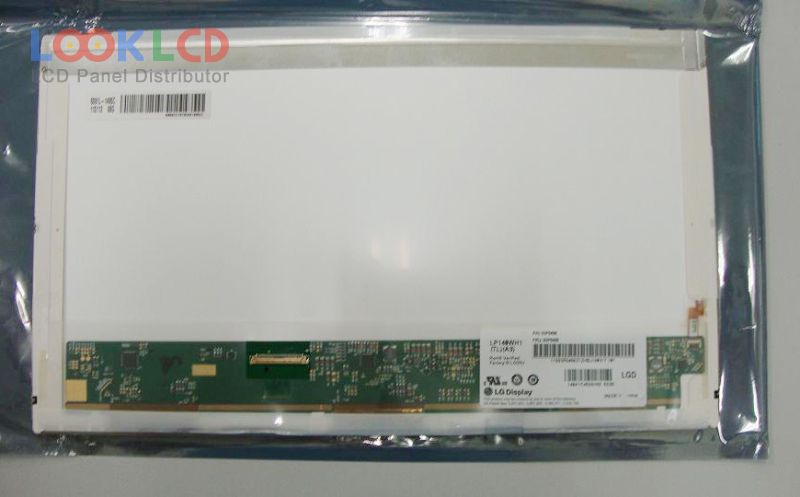

| Nombor Bahagian | LP140WH1-TLA3 |
| Jenama | LG Display |
| Saiz | 14.0 |
| Permohonan | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LP140WH1-TLA3 30 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 14.0 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 309.399×173.952 mm |
| garis besar | 323.5×192×5.2 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Min.) |
| warna paparan | 262K (6-bit), CIE193160% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
