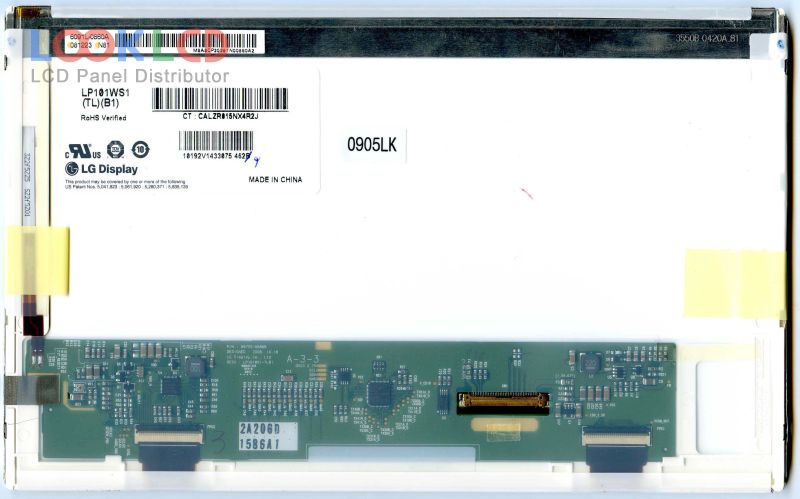

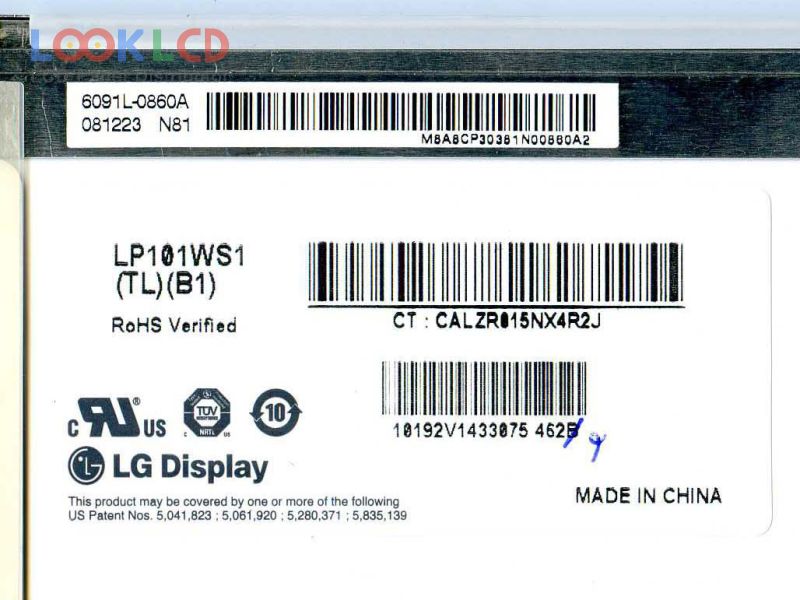

| Nombor Bahagian | LP101WS1-TLB1 |
| Jenama | LG Display |
| Saiz | 10.1 |
| Permohonan | NOPC |
| Resolusi | 1024×576 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | LG.Philips LCD |
| model panel | LP101WS1-TLB1 5 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1024(RGB)×576 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 222.72×125.28 mm |
| garis besar | 235×143×5.2 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Min.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| permohonan | NOPC |
