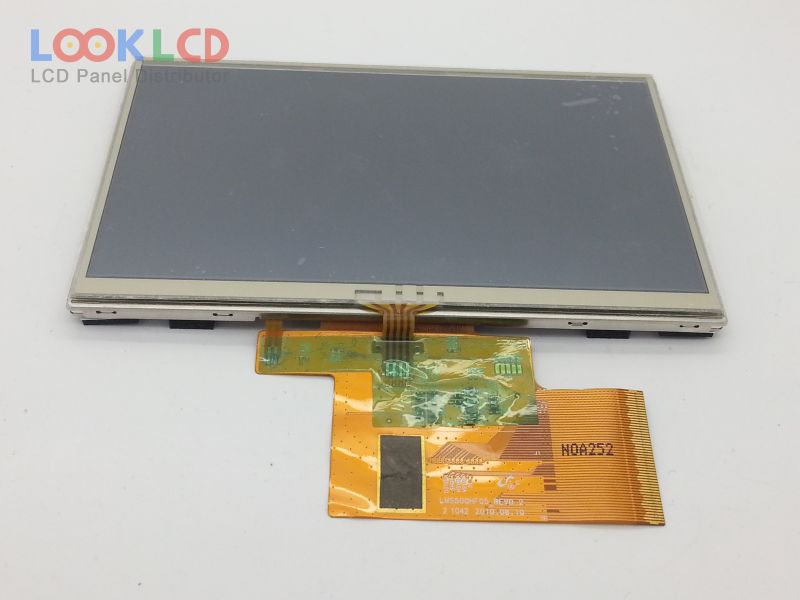

| Nombor Bahagian | LMS500HF01 |
| Jenama | Samsung |
| Saiz | 5.0 |
| Permohonan | PND |
| Resolusi | 480×272 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SAMSUNG SMD |
| model panel | LMS500HF01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.0 inch |
| resolusi | 480×272(RGB) , WQVGA |
| mod paparan | VA, Normally Black, TMR |
| kawasan aktif | 110.88×62.832 mm |
| garis besar | 120.7×75.8×4.45 mm |
| permukaan | |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 800 : 1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 17/15 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 7S2PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit), 50 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PND |
