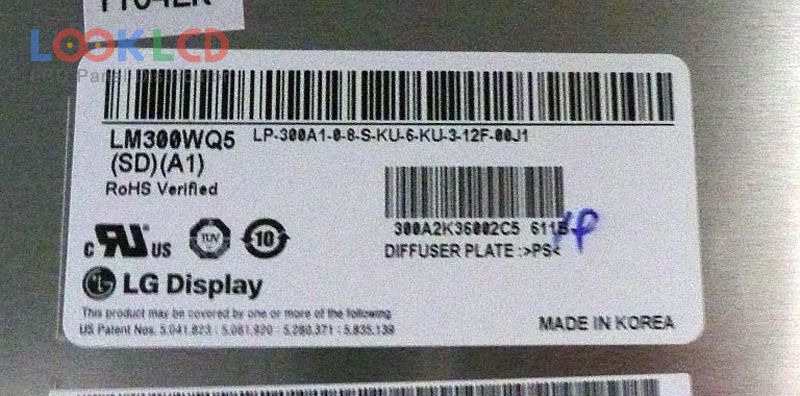

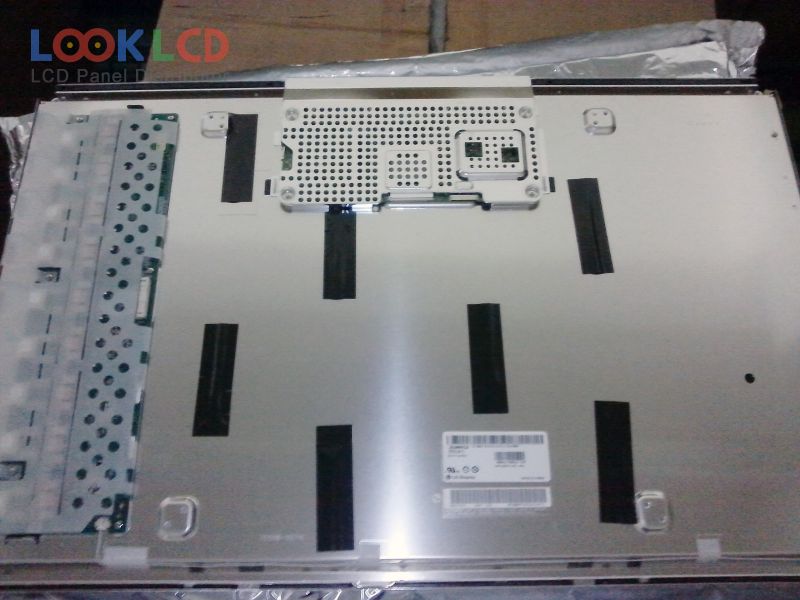

| Nombor Bahagian | LM300WQ5-SDA1 |
| Jenama | LG Display |
| Saiz | 30.0 |
| Permohonan | DMPC |
| Resolusi | 2560×1600 |
| Komposisi | LCM |
| Kecerahan | 370 |
| CR | 1000:1 |
| Warna | 1.07B |
| Lampu latar | CCFL |
| Antara muka | eDP |
| jenama panel | LG Display |
| model panel | LM300WQ5-SDA1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 30.0 inch |
| resolusi | 2560(RGB)×1600 , WQXGA |
| mod paparan | H-IPS, Normally Black, Transmissive |
| kawasan aktif | 641.28×400.8 mm |
| garis besar | 677.3×436.8 mm |
| permukaan | Antiglare (Haze 13%), Hard coating (3H) |
| kecerahan | 370 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 1.07B (10-bit), CIE1931104% |
| masa tindak balas | 7 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 18 pcsCCFLEmbedded (Inverter) |
| antara muka isyarat | eDP (4 Lanes), 50 pins |
| voltan masukan | 18.0V (Typ.) |
| permohonan | DMPC |
