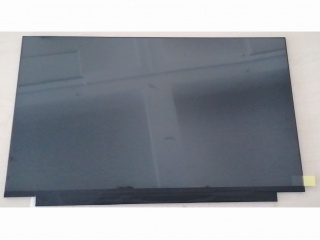

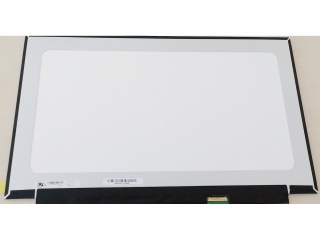

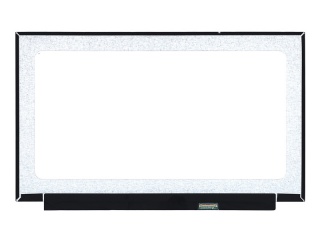

| Nombor Bahagian | LM156LFCL13 |
| Jenama | PANDA |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | Oxide TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | PANDA |
| saiz pepenjuru | 15.6 inch |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| kawasan aktif | 344.16(H)×193.59(V) mm |
| kawasan bezel | - |
| kecerahan | 220 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| warna sokongan | 262K 47% NTSC |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| kadar bingkai | 60Hz |
| jenis antara muka | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | LM156LFCL13 (NCP0063) |
| menaip | Oxide TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 350.66(H)×216.69(V) ×3.2(D) mm |
| rawatan | Antiglare, Hard coating (3H) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | FFS, Normally Black, Transmissive |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| direka untuk | Laptop |
| panel sentuh | Without |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPK1 | LG Display | 15.6 | 1920×1080 |
| LTN156AT11-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| LTN156HT01-101 | Samsung | 15.6 | 1920×1080 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| TMS156WX1-02TC | Tianma | 15.6 | 1366×768 |
