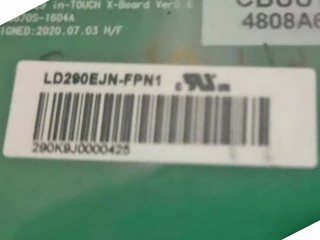

| Nombor Bahagian | LD290EJN-FPN1 |
| Jenama | LG Display |
| Saiz | 28.6 |
| Permohonan | Digital Signage Stre |
| Resolusi | 1920×540 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 4 |
| Antara muka | LVDS |
| pengilang | LG Display |
| saiz skrin | 28.6 inch (Native bar) |
| nombor piksel | 1920(RGB)×540 69PPI |
| kawasan aktif (mm) | 698.4 × 196.425 (H×V) |
| kawasan bezel (mm) | 700.4 × 198.44 (H×V) |
| kecerahan | 500 cd/m² (Typ.) |
| sudut pandangan | 89/89/89/89 (Min.)(CR≥10) |
| pandangan yang baik di | Symmetry |
| kedalaman warna | 16.7M 72% NTSC |
| jisim | 1.80/2.00Kgs (Typ./Max.) |
| kadar segar semula | 60Hz |
| jenis isyarat | LVDS (2 ch, 8-bit) , 51 pins Connector |
| bekalan voltan | 12.0V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | LD290EJN-FPN1 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 712.8 × 213.74 (H×V×D) |
| rawatan | Antiglare, Hard coating (4H) |
| nisbah kontras | 1000 : 1 (Typ.) (TM) |
| tindak balas | 6 (Typ.)(G to G) ms |
| mod kerja | IPS, Normally Black, Transmissive |
| lampu latar | 4 strings WLED , 50K hours , No Driver |
| digunakan untuk | Digital Signage Stretched Bar LCD |
| skrin sentuh | In-Cell Touch |
