LG Display LC370W01-A6 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com

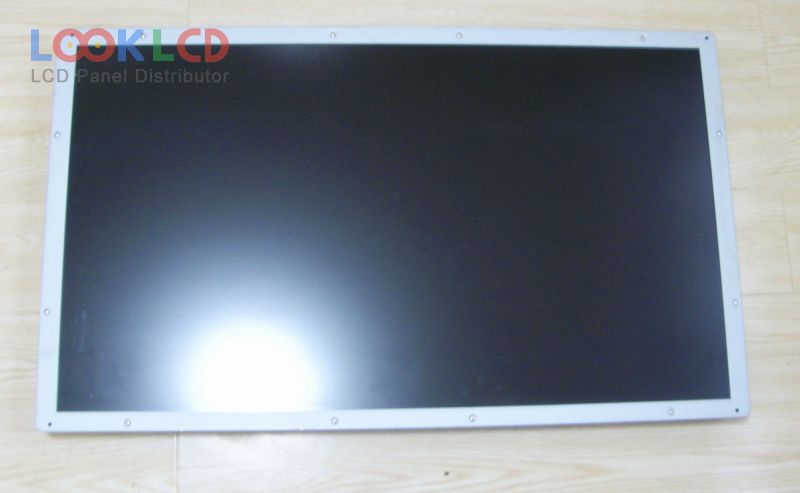

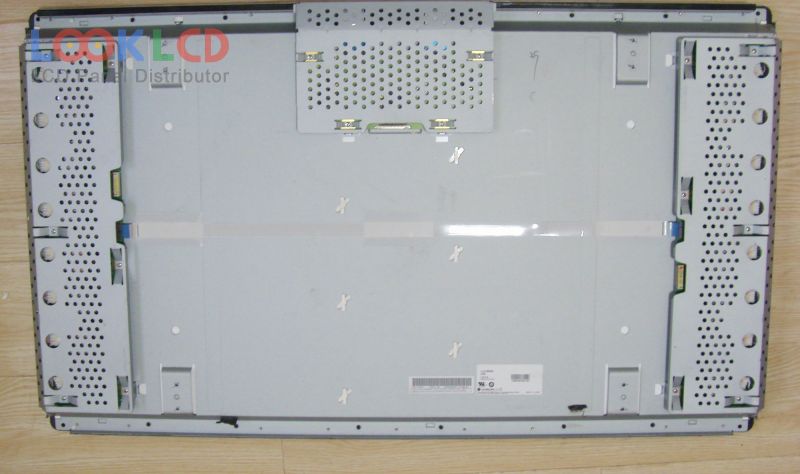

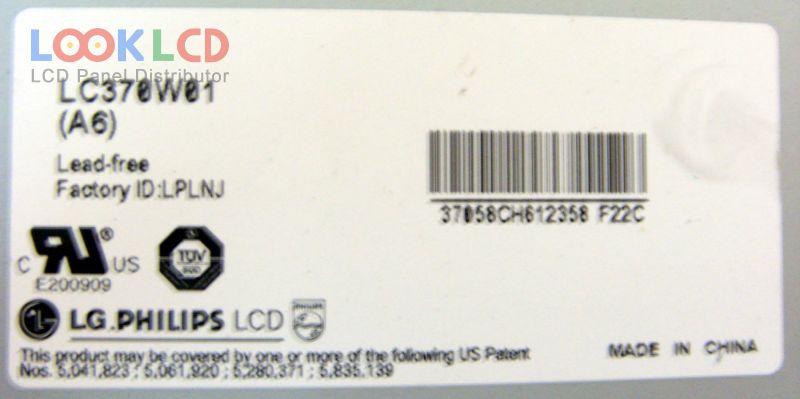

LC370W01-A6


Jenama
LG Display
Saiz
37
Permohonan
LCTV
Resolusi
1366×768
Komposisi
LCM
Kecerahan
500
CR
600:1
Warna
16.7M
Lampu latar
CCFL
Antara muka
LVDS
In Stock
8439
Spesifikasi

Nombor Bahagian LC370W01-A6
JenamaLG Display
Saiz37
PermohonanLCTV
Resolusi1366×768
KomposisiLCM
Kecerahan500
CR600:1
Warna16.7M
Lampu latarCCFL
Antara mukaLVDS
jenama panelLG.Philips LCD
model panelLC370W01-A6
jenis panel a-Si TFT-LCD , LCM
saiz panel37 inch
resolusi1366(RGB)×768 , WXGA
mod paparanS-IPS, Normally Black, Transmissive
kawasan aktif819.6×460.8 mm
garis besar877×516.8 mm
permukaanAntiglare, Hard coating (3H)
kecerahan500 cd/m² (Typ.)
nisbah kontras600:1 (Typ.)
warna paparan16.7M (8-bit)
masa tindak balas8/8 (Typ.)(Tr/Td); 16 (Typ.)(G to G)
sudut pandangan88/88/88/88 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu16 pcsCCFLEmbedded (Inverter)
antara muka isyaratLVDS (1 ch, 8-bit), 30 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
