LG Display LC320EUD-SDF3 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

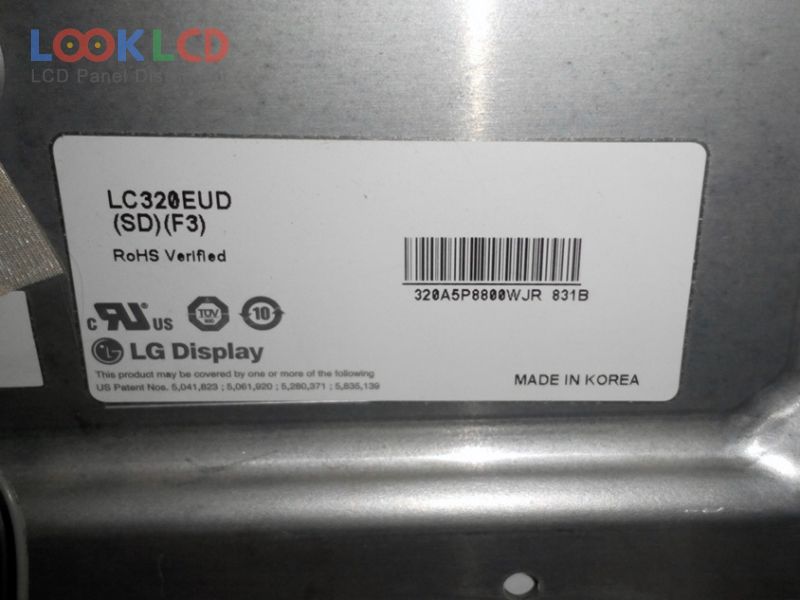

LC320EUD-SDF3

LC320EUD-SDF3
LC320EUD-SDF3 thumb
Jenama
LG Display
Saiz
31.5
Permohonan
LCTV
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
400
CR
1600:1
Warna
16.7M/1.06B
Lampu latar
WLED
Antara muka
LVDS
In Stock
19083
Spesifikasi

Nombor Bahagian LC320EUD-SDF3
JenamaLG Display
Saiz31.5
PermohonanLCTV
Resolusi1920×1080
KomposisiLCM
Kecerahan400
CR1600:1
Warna16.7M/1.06B
Lampu latarWLED
Antara mukaLVDS
jenama panelLG Display
model panelLC320EUD-SDF3
jenis panel a-Si TFT-LCD , LCM
saiz panel31.5 inch
resolusi1920(RGB)×1080 , FHD
mod paparanIPS, Normally Black, Transmissive
kawasan aktif698.4×392.85 mm
garis besar735.4×433 mm
permukaanAntiglare (Haze 10%), Hard coating (2H)
kecerahan400 cd/m² (Typ.)
nisbah kontras1600:1 (Typ.)
warna paparan16.7M/1.06B (8-bit / 8-bit + Dithering)
masa tindak balas5 (Typ.)(G to G); 6 (Typ.)(MPRT)
sudut pandangan89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
kekerapan120Hz+120Hz
jenis lampuWLEDEmbedded (LED Driver)
antara muka isyaratLVDS (4 ch, 8/10-bit), 92 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
Model Keluarga
LC320EUA-PFF1 LG Display 31.5 1920×1080
LC320EUD-SCA1 LG Display 31.5 1920×1080
LC320EUD-SDA2 LG Display 31.5 1920×1080
LC320EUD-SEF1 LG Display 31.5 1920×1080
LC320EUH-SCA1 LG Display 31.5 1920×1080
LC320EUJ-FFE2 LG Display 31.5 1920×1080
LC320EUN-SEM2 LG Display 31.5 1920×1080
LC320EXJ-SEK2 LG Display 31.5 1366×768
LC320EXN-SDA3 LG Display 31.5 1366×768
LC320EXN-SEA2 LG Display 31.5 1366×768
