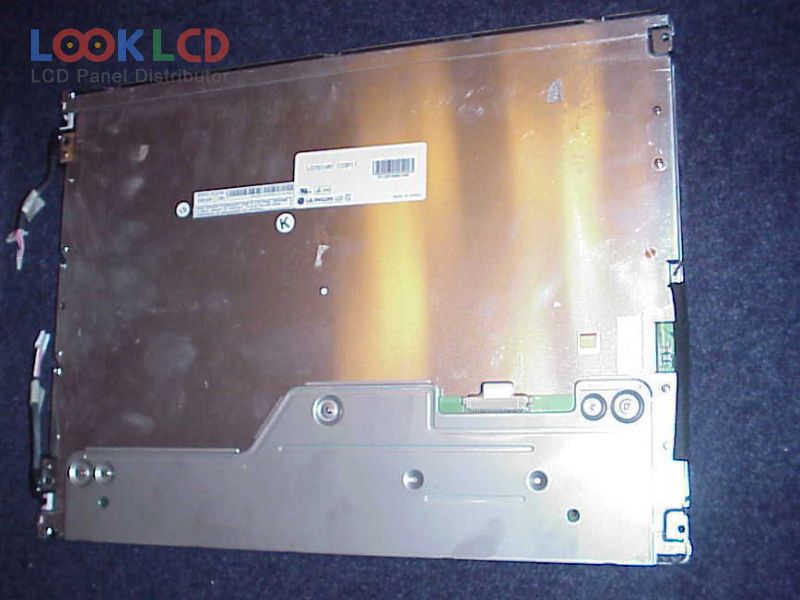

Nombor Bahagian | LC151X01-C3P1 |
Jenama | LG Display |
Saiz | 15.1 |
Permohonan | LCTV |
Resolusi | 1024×768 |
Komposisi | LCM |
Kecerahan | 400 |
CR | 350:1 |
Warna | 16.2M |
Lampu latar | CCFL |
Antara muka | LVDS |
jenama panel | LG.Philips LCD |
model panel | LC151X01-C3P1 |
jenis panel | a-Si TFT-LCD , LCM |
saiz panel | 15.1 inch |
resolusi | 1024(RGB)×768 , XGA |
mod paparan | TN, Normally White, Transmissive |
kawasan aktif | 307.2×230.4 mm |
garis besar | 352×263.5 mm |
permukaan | Antiglare (Haze 13%), Hard coating (3H) |
kecerahan | 400 cd/m² (Typ.) |
nisbah kontras | 350:1 (Typ.) |
warna paparan | 16.2M (6-bit + FRC) |
masa tindak balas | 7/18 (Typ.)(Tr/Td) |
sudut pandangan | 75/75/50/75 (Typ.)(CR≥10)(L/R/U/D) |
kekerapan | 60Hz |
jenis lampu | 4 pcsCCFLWithout Driver |
antara muka isyarat | LVDS (1 ch, 8-bit), 20 pins |
voltan masukan | 5.0V (Typ.) |
permohonan | LCTV |
