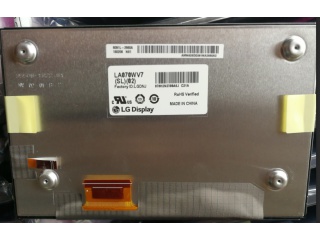

| Nombor Bahagian | LA070WV7-SL02 |
| Jenama | LG Display |
| Saiz | 7.0 |
| Permohonan | Outdoor High Brightn |
| Resolusi | 800×480 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 1100:1 |
| Warna | 16.7M |
| Lampu latar | 6S3P |
| Antara muka | LVDS |
| pengilang | LG Display |
| nama model | LA070WV7-SL02 |
| saiz skrin | 7.0 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 800(RGB)×480 (WVGA) 133PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 152.4 × 91.44 (H×V) |
| garis besar (mm) | 166.4 × 106.2 × 10.7 (H×V×D) |
| kawasan bezel (mm) | 158.4 × 94.2 (H×V) |
| rawatan | Antiglare (Haze 25%) |
| kecerahan | 1000 cd/m² (Typ.) |
| nisbah kontras | 1100 : 1 (Typ.) (TM) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| tindak balas | 16/14 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 65% NTSC |
| lampu latar | 6S3P WLED , 30K hours , No Driver |
| jisim | 162/167g (Typ./Max.) |
| digunakan untuk | Outdoor High Brightness Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (1 ch, 8-bit) , FPC 50 pins |
| bekalan voltan | 3.3/13/18/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. penilaian | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
