AUO L170E3 EC-5 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

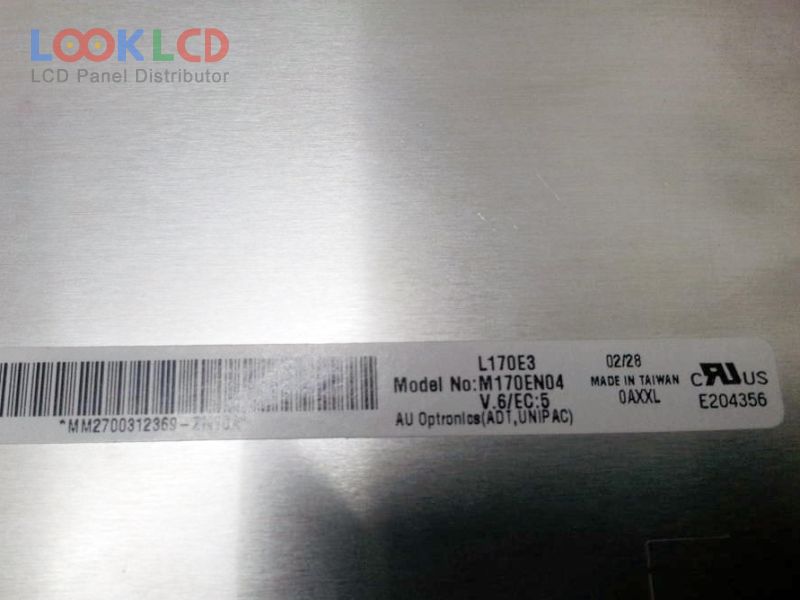

L170E3 EC-5

L170E3 EC-5
L170E3 EC-5 thumb
Jenama
AUO
Saiz
17.0
Permohonan
DMPC
Resolusi
1280×1024
Komposisi
LCM
Kecerahan
250
CR
400:1
Warna
16.7M
Lampu latar
CCFL
Antara muka
LVDS
In Stock
12992
Spesifikasi

Nombor Bahagian L170E3 EC-5
JenamaAUO
Saiz17.0
PermohonanDMPC
Resolusi1280×1024
KomposisiLCM
Kecerahan250
CR400:1
Warna16.7M
Lampu latarCCFL
Antara mukaLVDS
jenama panelACER
model panelL170E3 EC-5 3 Compatible model
jenis panel a-Si TFT-LCD , LCM
saiz panel17.0 inch
resolusi1280(RGB)×1024 , SXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif337.92×270.336 mm
garis besar383.5×306×20 mm
permukaan
kecerahan250 cd/m² (Typ.)
nisbah kontras400:1 (Typ.)
warna paparan16.7M (8-bit)
masa tindak balas25/15 (Typ.)(Tr/Td)
sudut pandangan70/70/60/65 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu4 pcsCCFLWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
