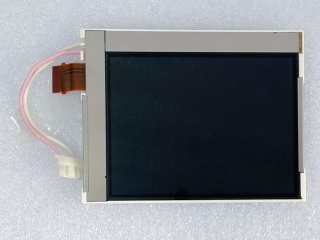

| Nombor Bahagian | KHS038AA1AG-G83 |
| Jenama | Kyocera |
| Saiz | 3.8 |
| Permohonan | Industrial |
| Resolusi | 240×320 |
| Komposisi | LCM , CSTN-LCD |
| Kecerahan | |
| CR | 15:1 |
| Warna | Color |
| Lampu latar | 1 |
| Antara muka | Parallel |
| pengilang | Kyocera |
| saiz skrin | 3.8 inch |
| nombor piksel | 240(RGB)×320 (QVGA) 105PPI |
| kawasan aktif (mm) | 57.58 × 76.78 (H×V) |
| kecerahan | 16 cd/m² (Typ.) |
| sudut pandangan | 50/45/20/30 (Typ.)(CR≥2) |
| pandangan yang baik di | - |
| kedalaman warna | Color |
| jisim | - |
| kadar segar semula | 75Hz |
| jenis isyarat | Parallel Data (1ch, 8-bit) FPC |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | KHS038AA1AG-G83 |
| jenis skrin | LCM , CSTN-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | - |
| nisbah kontras | 15 : 1 (Typ.) (TM) |
| tindak balas | 250/150 (Typ.)(Tr/Td) ms |
| mod kerja | STN, Normally Black, Transflective |
| lampu latar | 1 pcs CCFL , No Driver |
| digunakan untuk | Industrial |
| skrin sentuh | - |
