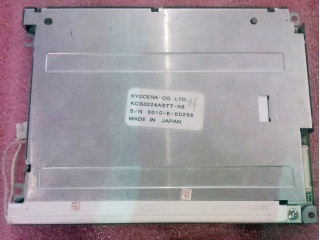

| Nombor Bahagian | KCS3224ASTT-X6 |
| Jenama | Kyocera |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 320×240 |
| Komposisi | CSTN-LCD , LCM |
| Kecerahan | |
| CR | 25:1 |
| Warna | Color |
| Lampu latar | - |
| Antara muka | Parallel |
| jenama | Kyocera |
| saiz pepenjuru | 5.7 inch |
| format piksel | 320(RGB)×240 [QVGA] 70PPI |
| kawasan aktif | 115.2(H)×86.4(V) mm |
| kecerahan | - |
| arah pandang | - |
| sudut pandangan | 50/50/30/30 (Typ.)(CR≥2) |
| warna sokongan | Color |
| berat badan | - |
| kadar bingkai | 75Hz |
| jenis antara muka | Parallel Data (1ch, 8-bit) Connector |
| bekalan kuasa | 5.0V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | KCS3224ASTT-X6 |
| menaip | CSTN-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | - |
| nisbah kontras | 25:1 (Typ.) (TM) |
| masa tindak balas | 220/110 (Typ.)(Tr/Td) |
| mod operasi | STN, Normally Black, Transmissive |
| sumber cahaya | |
| direka untuk | Industrial |
| panel sentuh | Without |
