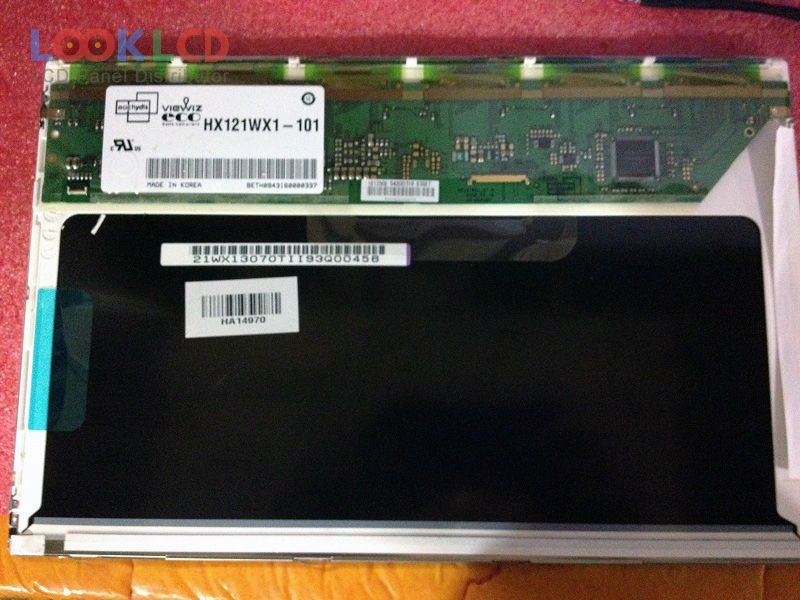

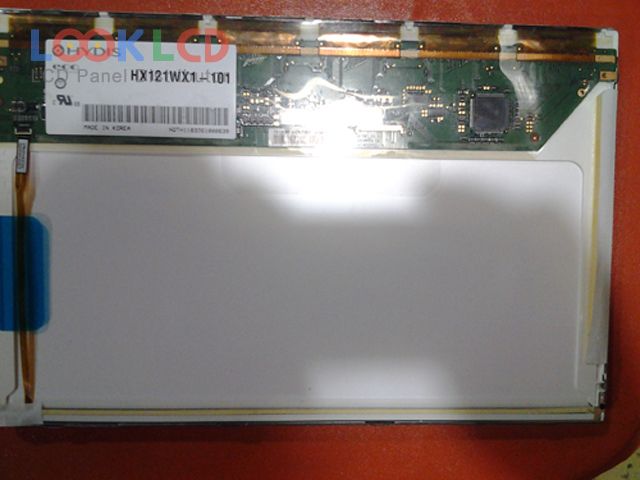

| Nombor Bahagian | HX121WX1-101 |
| Jenama | HYDIS |
| Saiz | 12.1 |
| Permohonan | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HYDIS |
| model panel | HX121WX1-101 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | AFFS, Normally Black, Transmissive |
| kawasan aktif | 261.12×163.2 mm |
| garis besar | 276.8×180×6.8 mm |
| permukaan | Antiglare, Hard coating (2H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193142% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 90/90/90/90 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 12S4PWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
