| Nombor Bahagian | HV430FHB-F90 |
| Jenama | BOE |
| Saiz | 43 |
| Permohonan | TV Sets |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antara muka | |
| jenama panel | BOE |
| saiz panel | 43" |
| resolusi | 1920(RGB)×1080, FHD, 51PPI |
| kawasan paparan | 940.896(W)×529.254(H) mm |
| saiz garis besar | 950.896(W)×541.75(H) ×1.4(D) mm |
| kecerahan | 0 cd/m² |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| kedalaman kaca | 0.50+0.50 mm |
| warna paparan | 1.07B 72% NTSC |
| kekerapan | 60Hz |
| berat badan | 1.51Kgs (Typ.) |

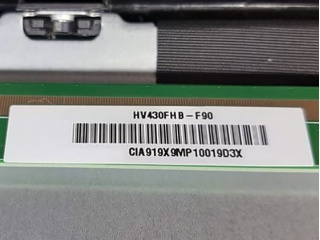

| model panel | HV430FHB-F90 |
| jenis panel | a-Si TFT-LCD , CELL |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Antiglare (Haze 1%), Hard coating (3H) |
| nisbah kontras | 1200:1 (Typ.) (TM) |
| mod paparan | ADS, Normally Black, Transmissive |
| masa tindak balas | 8 (Typ.)(G to G) |
| ketransmisian | 6.3% (Typ.)(with Polarizer) |
| jenis lampu | No B/L |
| skrin sentuh | Without |
| permohonan | TV Sets |
